V0-grade flame-retardant material (UL94)
Supports 2500A current capacity
Modular design enables 50% faster installation
The clamping force of busbar holders directly resists short-circuit electrodynamic stress. We additionally provide:

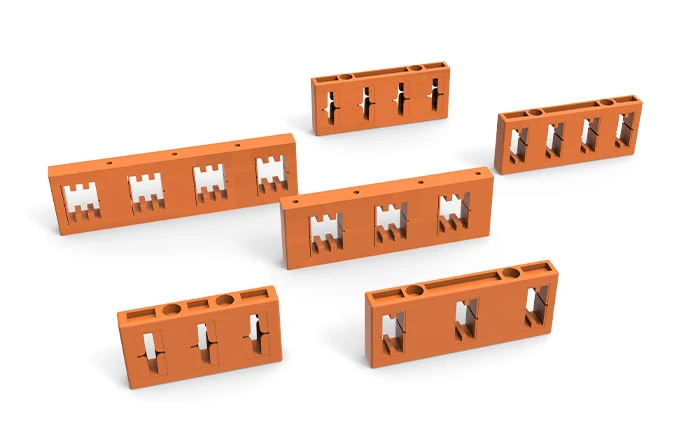

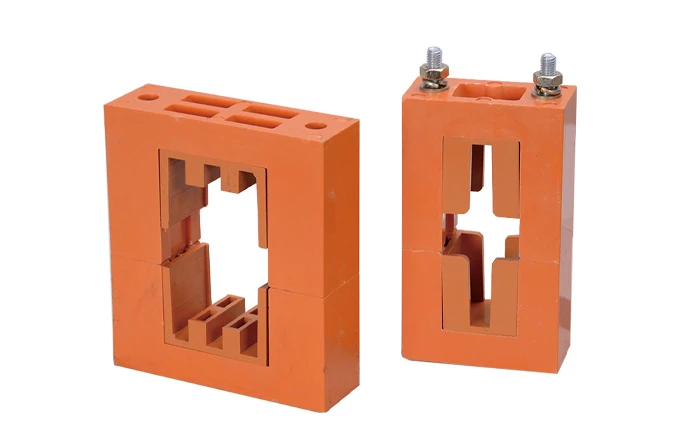

A Busbar Frame, also known as an Insulator or Busbar Support, is a critical component in electrical switchgear (like MNS, GCS, GGD panels). Its primary functions are to:
Secure and support main power busbars within the cabinet.
Provide electrical insulation between the live busbars and the grounded metal enclosure.
Maintain proper spacing (phase-to-phase and phase-to-ground) for safety and compliance.
Enhance the overall mechanical stability and safety of the power distribution system.
Our insulators are typically manufactured from high-performance, fiber-reinforced thermoset plastics such as:
BMC (Bulk Molding Compound)
SMC (Sheet Molding Compound)
These materials offer excellent mechanical strength, high tracking resistance, and are self-extinguishing.
Yes, absolutely. We offer extensive customization options:
Color (standard is orange, but others are available)
Material properties and flame-retardant range
Embedded nuts or inserts (brass, zinc-plated steel) with various thread sizes (M5, M6, M8, M10) and depths.
Dimensions (Height, Width, Length) and center spacing to match your busbar layout.
