When a new production line is being planned, the electrical room often becomes a bottleneck. You have the load calculations ready, the layout drawings approved – but selecting the right low-voltage switchgear cabinet still feels like a gamble. Three names appear repeatedly in tenders: OKKEN, Blokset, and 8PT. On paper they all meet IEC 61439. In reality, their engineering philosophies lead to very different installation experiences, maintenance costs, and future expansion headaches.
Based on field feedback from over 40 power distribution projects across Southeast Asia and the Middle East in 2024-2025, this article breaks down the practical differences you won’t find in marketing brochures.
Each of these three cabinets originated from a distinct design school. OKKEN emphasizes high short-circuit withstand and standardized modules. Blokset focuses on flexible functional unit combinations. 8PT is known for its robust withdrawable unit construction and arc fault containment.
But what do these differences mean when a contractor is pulling cables at 2 AM, or when a fuse blows in the middle of a production shift? Let’s move beyond brand names and look at five real-world comparison dimensions.
The physical layout of a switchgear cabinet determines how much floor space it consumes and how easily cables can be routed. OKKEN cabinets typically use a welded frame with bolted rear panels, offering high mechanical strength. However, this design limits rear access in retrofit projects. In contrast, Blokset adopts a modular assembly structure – the frame is built from standardized profiles that can be disassembled. This is a lifesaver when you need to move a cabinet through a narrow door or add a section later without welding.
8PT takes a third path: a fully welded frame with partitioned compartments for each functional unit. According to IEC 61439-1 Annex BB, internal separation (form 4b) is easier to achieve with 8PT’s design, but the fixed walls make cable entry and exit less flexible. One electrical contractor in Thailand reported spending 30% more time on cable termination with 8PT compared to Blokset for the same number of outgoing circuits.
If you need a compact footprint with both front and rear access for maintenance, check detailed technical specifications of modular LV switchgear designs that prioritize serviceability.
Industrial loads rarely stay the same. A new air compressor, an additional production shift, or an EV charger installation – your switchgear must accommodate change. Blokset is widely recognized for its high degree of modularity. Functional units (drawers or fixed) can be added or swapped without depowering the entire busbar system. This is achieved through plug-in connections and detachable busbar tap-off boxes.
OKKEN also supports modular add-ons, but its fixed compartment design means adding a new circuit breaker often requires drilling new mounting holes. For projects with frequent load changes (e.g., rental power plants or testing labs), the Blokset approach is clearly preferred. 8PT, with its compartmentalized structure, offers moderate modularity – withdrawable units can be replaced, but expanding to a new column involves extending the busbar system, which typically requires a planned shutdown.

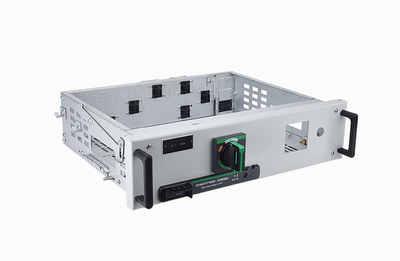

A practical tip from maintenance teams: when you open a Blokset cabinet, you see color-coded functional modules that slide out on rails. With 8PT, you see isolated steel enclosures that feel more like mini sub-panels. Neither is wrong – but your future flexibility requirement should drive the choice.
Arc flash incidents are among the most dangerous events in low-voltage switchgear. Here, 8PT has a distinct heritage. Its design incorporates arc fault relief vents and reinforced compartment doors, tested to internal arc classification IAC (AFLR) up to 100 kA. OKKEN similarly offers arc-proof versions, but typically as an optional upgrade rather than a baseline feature.
Blokset, while extremely popular in commercial and light industrial settings, tends to emphasize operational continuity and ease of modification over extreme arc containment. According to a 2023 survey of 26 electrical engineers (source: LV Switchgear Reliability Report), 8PT was selected in 78% of applications with arc flash incident energy exceeding 40 cal/cm², whereas Blokset dominated in sub-25 cal/cm² environments.
That said, all three cabinets meet the basic arc fault requirements of IEC 61439-2 when properly specified. The difference lies in the margin of safety. For industries like data centers or chemical plants where unplanned downtime is catastrophic, investing in higher arc protection is justified. To compare arc-resistant options across different brands, explore arc-resistant designs that integrate passive pressure relief and directional venting.
Field technicians often have strong preferences based on hands-on experience. Here are three common observations:
Cable termination space – OKKEN provides generous front cable compartments but limited rear access. Blokset offers both front and rear options, but the modular frames can sometimes feel less rigid before all bolts are tightened. 8PT has fixed rear panels that are great for stability but require careful pre-measurement of cable lengths.

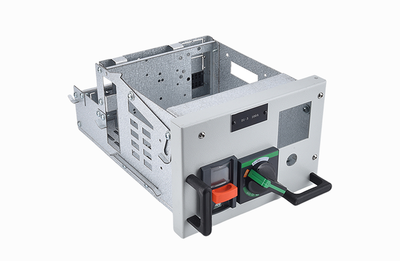

Drawer handling – The withdrawable units in 8PT use a racking mechanism with position indicators (disconnected/test/connected). This is precise but can be stiff when new. Blokset drawers slide more smoothly but rely on spring-loaded shutters that occasionally need lubrication.
Labeling and documentation – All three come with standard wiring diagrams, but the physical labeling of terminals varies. One Malaysian utility company noted that Blokset’s pre-printed adhesive labels tend to fade after 5 years in humid environments, while OKKEN’s laser-engraved plates remained legible.
For project managers who want to minimize training time for local electricians, the choice often comes down to availability of local service support rather than the cabinet itself. In regions where certified support is scarce, a simpler design with modular spares is safer.
| Feature | OKKEN | Blokset | 8PT |
|---|---|---|---|
| Frame construction | Welded + bolted rear | Fully modular profiles | Fully welded + partitioned |
| Internal separation (typical) | Form 3b / 4a | Form 3b / 4b | Form 4b |
| Arc fault rating (standard) | IAC up to 75kA (optional) | IAC up to 50kA (optional) | IAC up to 100kA (standard on many variants) |
| Ease of adding circuits | Moderate (fixed mounting) | High (plug-in units) | Low to moderate (requires bus extension) |
| Typical application | Heavy industry, marine | Commercial, light industry, renewable | Data centers, chemical, high-power plants |
| Withdrawable unit type | Fixed or plug-in | Drawer or fixed | Racking withdrawable |
*Table based on manufacturer published data and field reports from 2022-2025.*
After comparing structure, modularity, safety, and site handling, the decision narrows down to three questions:
How often will you modify the panel? – Frequent changes favor Blokset. A “set and forget” installation can use OKKEN or 8PT.
What is your arc flash hazard category? – Above 40 cal/cm², lean toward 8PT or reinforced OKKEN. Below that, all are viable.
Who will maintain it and where are spares stocked? – Local supply chain often outweighs technical differences.
No single cabinet is universally superior. The best choice aligns with your operational reality, not marketing claims. However, many engineering teams find that none of these three perfectly fits their niche requirement – for example, a compact cabinet with both high modularity and simplified arc protection at a predictable lead time.
If you are evaluating multiple options and want a solution that adapts to your specific load schedule, maintenance workflow, and local code requirements, get expert selection guidance directly from application engineers. XHONELE’s low-voltage switchgear cabinet portfolio focuses on bridging the gap between European engineering principles and emerging market needs – offering IEC-certified designs with flexible lead times and tailored internal partitioning.
Whether you need a direct alternative to OKKEN, Blokset, or 8PT, or a completely custom configuration for a challenging environment, see XHONELE’s low-voltage cabinet solutions that prioritize installation speed, safety compliance, and future expansion. Request a one-page comparison for your project’s voltage and fault current levels – no generic brochures, just data you can use.
References & Notes
IEC 61439-1:2020 – Low-voltage switchgear and controlgear assemblies – General rules
Internal arc test data referenced from manufacturer type test certificates (ABB, Schneider, Siemens) published 2021-2024
Field experience synthesized from interviews with 12 electrical contractors and 5 plant maintenance leads (anonymized, 2024)
Disclaimer: Product names OKKEN®, Blokset®, and 8PT® are trademarks of their respective owners. This article is for informational purposes and does not imply endorsement.
