The Key Components of Drawer Cabinet

Precision-engineered components for every cabinet type — compatible, reliable, and ready to ship worldwide. With full technical support and fast delivery.

Rated for 125A to 630A

Anti-Mismating & Interlock Features

Audible Mating Confirmation

RC2

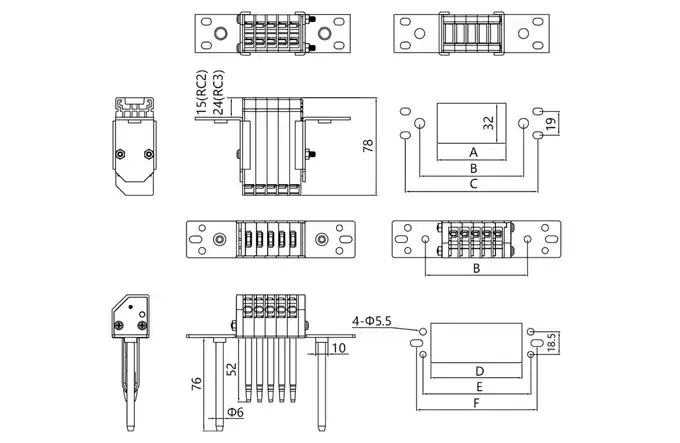

RC2-Quick Type Secondary Plug-in

RC3

RC3-Quick Type Secondary Plug-in

Three-pole

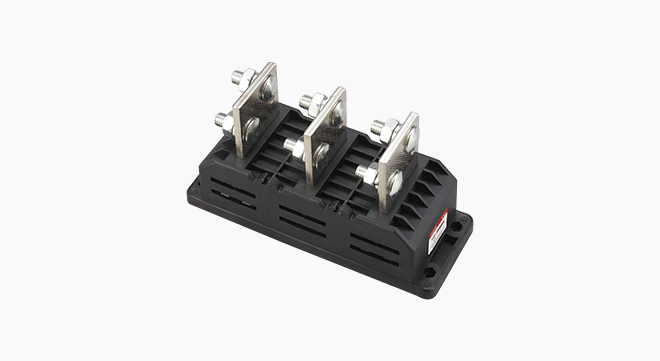

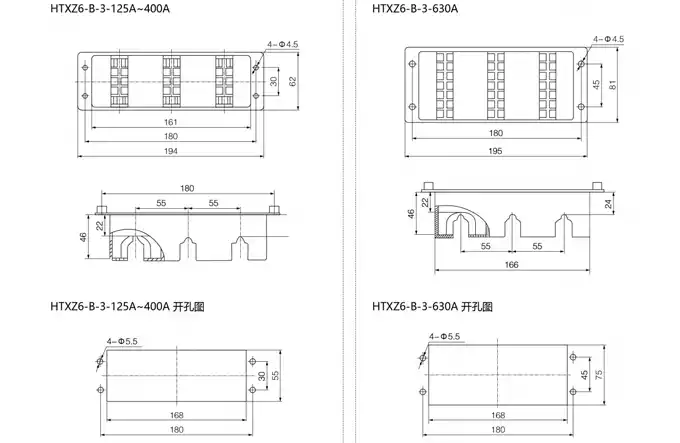

Three-pole Primary Incoming Line Cover

Four-pole

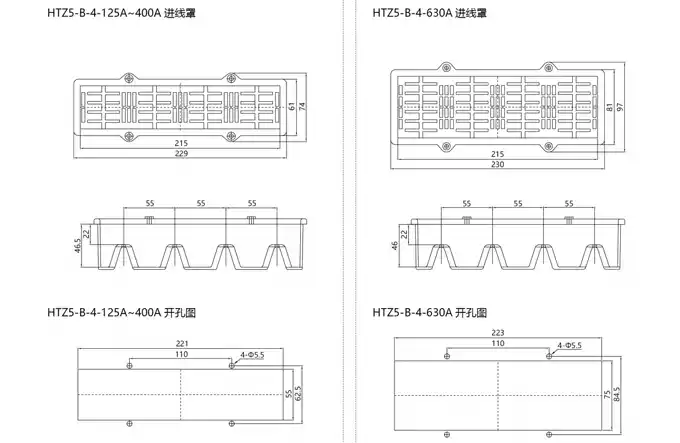

Four-pole Primary Incoming Line Cover

Three-pole

Three-pole Primary Static Plug-in

Four-pole

Four-pole Primary Static Plug-in

Three-pole

Three-pole Primary Dynamic Plug-in

Four-pole

Four-pole Primary Dynamic Plug-in

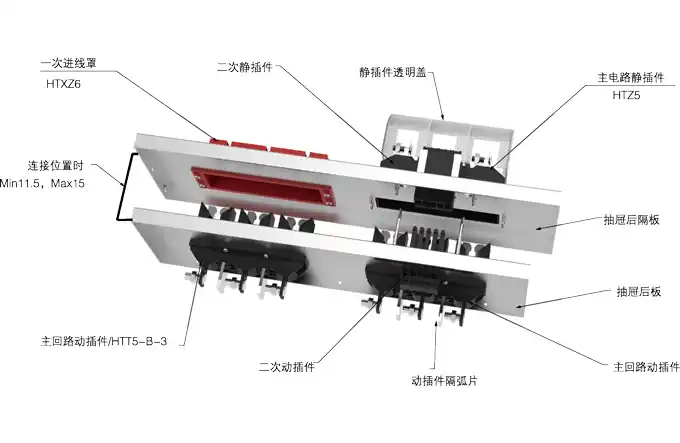

Beyond Components – Reliable Power Connection

The plug-in connector is the electrical lifeline of the drawer cabinet. We additionally provide:

Contact resistance test – report included per batch, ≤10μΩ.
Insertion force wear curve – for predictive maintenance planning.
Thermal simulation support – for high‑current drawers, calculate temperature rise margin.

Why Xhonele

XHONELE: Stable. Custom. Complete.

Controlled silver plating

5μm standard, 10μm for harsh environments.

Fully automated riveting

position tolerance ±0.1mm.

7 stock terminal ratings

32A to 630A.

Bundle with busbar supports & insulators

one‑stop for power connections, plus busbar layout advice.

Experts Online

Frequently Asked Questions About Drawer Cabinets & Accessories

Having technical difficulties?
Our experts are here to help.

What is the difference between primary and secondary connectors?

Primary connectors are used for main power circuits (up to 630A), available in 3-pole and 4-pole configurations. Secondary connectors are used for control and signal circuits with multi-pin layouts.

How do I select the right current rating for a primary connector?

Choose based on the load current. We offer 125A, 250A, 400A, and 630A models for both 3-pole and 4-pole systems.

What is the maximum number of pins available for secondary connectors?

Standard secondary connectors support up to 24 pins, with 16-pin as the default configuration. Custom layouts are available.

Are these connectors compatible with non-standard cabinets?

Yes. We provide custom connector solutions tailored to specific cabinet layouts and electrical requirements.

Blog & Insights

2026 / 06 / 01

How to Insert a Drawer Unit Safely

2026 / 05 / 25

Drawout vs Fixed Switchgear: Cost & Safety

2026 / 05 / 19

How a Low Voltage Drawer Cabinet Works

2026 / 05 / 12

The differences between OKKEN Cabinet, Blokset Cabinet, and 8PT cabinet body

2026 / 05 / 06

Don’t Buy Switchgear Drawers Before Reading

2026 / 04 / 29

Low Voltage Switchgear 2026: 5 Key Trends

2026 / 04 / 23

How to Choose the Right Drawer Switchgear for Industrial Projects

2026 / 04 / 21

Drawout vs Fixed: Which Costs Less?

2026 / 04 / 20

Hand Operated vs Motorized Switchgear Drawer

2026 / 04 / 16

What Are the Essential Low Voltage Switchgear Components?

GET A QUOTE

13634205622

+86 13634205622

[email protected]

RC2 - Number of Lines	6	8	10	12	14	16	18	20	22	24	26	28	30	32
A	38	47	56	65	74	83	92	101	110	119	128	137	146	155
B	65	74	83	92	101	110	119	128	137	146	155	164	173	182
C	88	97	106	115	124	133	142	151	160	169	178	187	196	205
D	73	84	95	104	113	122	131	140	149	158	167	176	185	194
E	93	102	111	120	129	138	147	156	165	174	183	192	201	210
F	104	113	122	131	140	149	158	167	176	185	194	203	212	221

Rated Voltage	AC690V
Rated Insulation Voltage	1000V
Allowable Operating Temperature	125℃
Vertical Busbar Thickness	6mm
Rated Current	125A, 250A, 400A, 630A
Power Frequency Withstand Voltage	3500V
Vertical Busbar Spacing	55mm

Rated Voltage	AC690V
Rated Insulation Voltage	1000V
Allowable Operating Temperature	125℃
Vertical Busbar Thickness	6mm
Rated Current	125A, 250A, 400A, 630A
Power Frequency Withstand Voltage	3500V
Vertical Busbar Spacing	55mm

Rated Voltage	AC690V
Rated Insulation Voltage	1000V
Allowable Operating Temperature	125℃
Vertical Busbar Thickness	6mm
Rated Current	125A, 250A, 400A, 630A
Power Frequency Withstand Voltage	3500V
Vertical Busbar Spacing	55mm

Model	A	B	C	D	Bolt
HTZ5-B-3-125A	20	43	20	40	M8
HTZ5-B-3-250A	20	43	20	40	M8
HTZ5-B-3-400A	30	55	30	51	M10
HTZ5-B-3-630A	50	73	45	71	M10

Model	A	B	C	D	Bolt
HTZ5-B-4-125A	20	65	50	39	M8
HTZ5-B-4-250A	20	65	50	39	M8
HTZ5-B-4-400A	30	80	65	54	M10
HTZ5-B-4-630A	50	100	85	75	M10

Model	A	B	C	Bolt
HTT5-B-3-125A	26	28	40	M8
HTT5-B-3-250A	26	28	40	M8
HTT5-B-3-400A	41	44	55	M10
HTT5-B-3-630A	61	64	74	M10

Model	A	B	C	Bolt
HTT5-B-4-125A	26	28	40	MB
HTT5-B-4-250A	26	28	40	MB
HTT5-B-4-400A	41	43	55	M10
HTT5-B-4-630A	61	63	75	M10
