Moldvolt Drawer Units: 1/2-2U, 63-800A, OEM-Ready

Classification of Moldvolt Drawer Unit

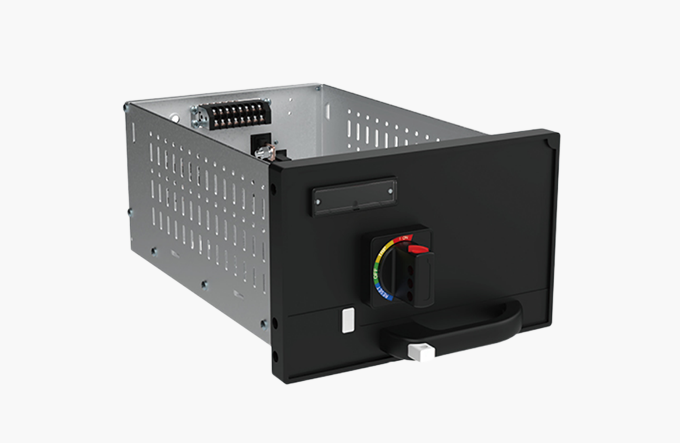

Moldvolt Switchgear Cabinet Drawer 1/2-Unit

Suitable for 63A–250A miniature circuit breakers（MCB） and instruments

Feature: Ultra-thin rails

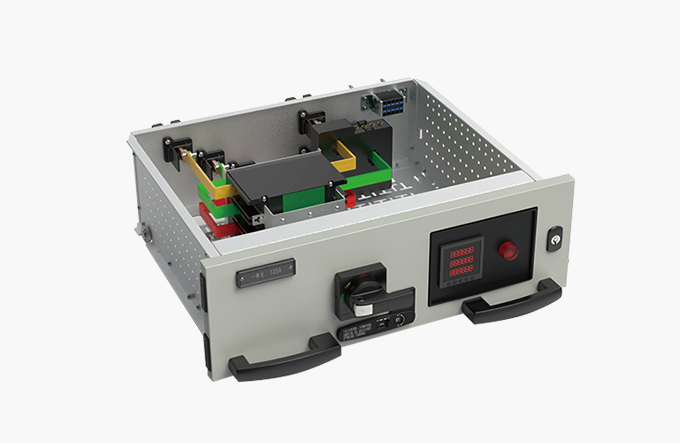

Moldvolt Switchgear cabinet drawer 1-Unit

Suitable for 125A–250A standard molded case circuit breakers

Feature: Quick-release interlock mechanism

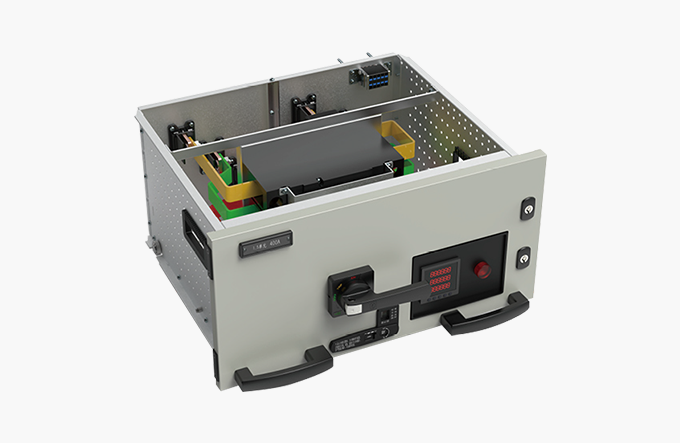

Moldvolt Switchgear Cabinet Drawer 1.5-Unit

Suitable for 250A–400A smart circuit breakers and high-current devices

Feature: Enhanced cooling design

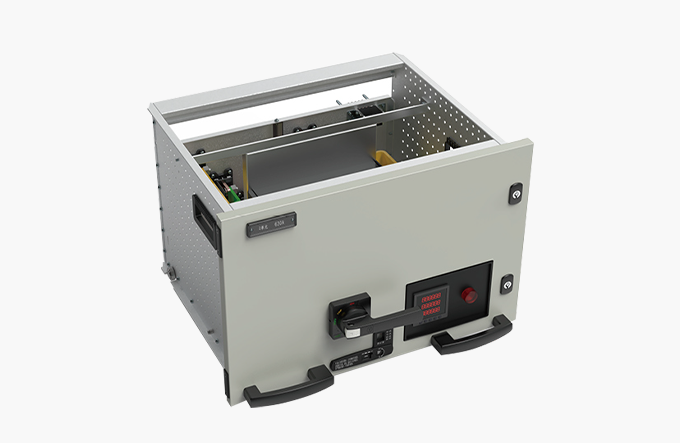

Moldvolt Switchgear Cabinet Drawer 2-Unit

Suitable for 630A–800A air circuit breakers and complex control systems

Feature: Busbar expansion solution

Main Structure

Silver‑plated contacts

Low contact resistance, high conductivity, anti‑corrosion.

100,000 mechanical cycles

Proven durability for long‑term operation.

Modular wiring harness

Pre‑wired options reduce on‑site assembly time by 30%.

Our Capabilities

We don't just sell drawer units – we help you integrate them into complete drawout cabinets.

Precision Engineering for Your Breaker Brand

Each drawer unit is designed with specific clearances and interface dimensions for ABB, Schneider, or Siemens breakers. We provide matching drawings and adjustment guides – no trial‑and‑error fitting.

100% Factory‑Tested Component Kits

Every interlock, guide rail, contact, and handle is individually tested before shipment. You receive a pre‑aligned kit – not loose parts – reducing your QC workload and assembly errors.

Interchangeability Across Cabinet Batches

All Moldvolt drawer units comply with strict dimensional and electrical tolerances, guaranteeing full mechanical and electrical interchangeability – even when produced in different batches or years.

From Drawer Unit to Complete Cabinet

We don’t stop at the drawer. We can supply the matching cabinet frame, busbar system, and assembly instructions – turning your drawer order into a complete switchgear production package. Ask us for a turnkey proposal.

Frequently Asked Questions About Drawer Cabinets & Accessories

Having technical difficulties?
Our experts are here to help.

Fixed Cabinet Business with Thin Profits? Upgrade to Drawable Cabinets in 3 Steps and Open Up a New High-End Market Landscape

Keywords: Fixed cabinet upgrade to drawable cabinet, GGD upgrade to GCK, Drawer-type switchgear solutions, Low-cost transformation, Power distribution cabinet upgrade
Content:
Many manufacturers focused on fixed cabinets (such as GGD) are facing challenges: severe product homogenization, intense price competition, and continuously shrinking profit margins. While looking to upgrade to higher-value drawer-type cabinets (such as 8PT, Okken, or Blokset cabinets), they often encounter obstacles like insufficient technical expertise and high investment risks.
Case Study:
A traditional distribution box manufacturer in Indonesia, struggling with price wars, decided to upgrade to low-voltage drawer cabinets but lacked design capabilities and a core component supply chain.
Our End-to-End Solution:
Design Solution Delivery: Provide fully validated design drawings and production process documentation for Moldvolt low-voltage drawer cabinets, ensuring "compliance and reliability from the very first cabinet."
Core Component Kits Supply: Deliver a full set of critical components, including withdrawal mechanisms, interlocking systems, and busbar frames, ensuring performance and safety without the need for in-house R&D.
Specialized Technical Training: Conduct targeted training for engineering teams on drawer cabinet assembly and commissioning, enabling quick mastery of core technologies.
Results:
The customer successfully launched their own brand of low-voltage drawer cabinets within 4 months, achieving a 35% increase in product gross margin and successfully entering local high-end commercial complexes and industrial projects.
If you are also trapped in the red ocean competition of fixed cabinets, [Get Drawer Cabinet Upgrade Solution], and let us help you break through.

What are the key features of MOLDVOLT drawer cabinets?

Self-locking mechanism (no need for traditional layered partition locking) Three-position operation (Separation, Test, Connection) Flip-type measurement and control board for easy installation Optional anti-drop door hinges and unlocking brackets Standardized observation window for unified visual management

What is the three-position function in MOLDVOLT drawers?

Separation: Auxiliary circuits are isolated Test: Auxiliary circuits connected, main circuit isolated Connection: Both main and auxiliary circuits are connected

Can MOLDVOLT cabinets be customized?

Yes, XHONELE offers one-on-one customization for large-scale equipment manufacturers, including sheet metal processing, injection molding, mold development, and surface treatment.
