The HC provides robust busbar fixation and insulation in demanding environments. Crafted from temperature-resistant BMC/SMC material, it supports full customization and fits standard busbar sizes for versatile power distribution applications.
Operating Temperature: -40℃ ~ +140℃
Material: Unsaturated Polyester Resin Fiber Reinforced Molding Compound (BMC)/(SMC)
Color, material properties can be customized according to customer requirements
Note: The heat shrink tubing specification for the female header sleeve of this product is increased by 3mm at both ends.

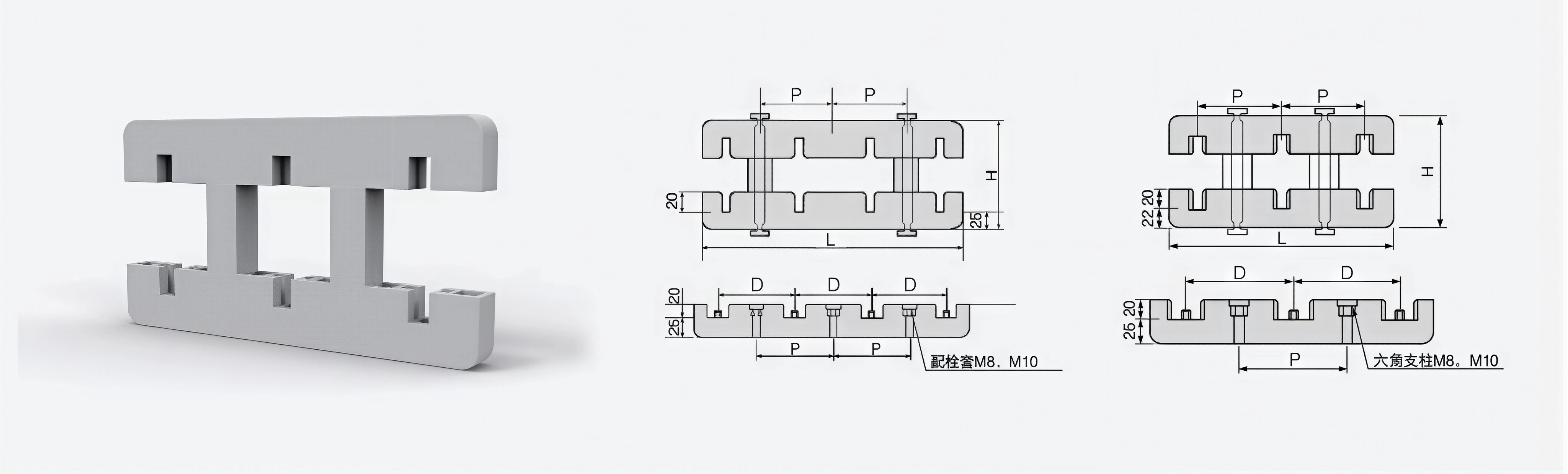

| Model | Apart(D) | Length(L) | Thickness(W) | Pitch-row(P) | Phase number | Specifications | Height(H) |
| DO3-240 | 80 | 240 | 25 | 80 | 3 | 40*4 50*5 60*+6 80*8 100*10 120*10 125*12 |
90 100 110 130 150 170 175 |
| DO8-280 | 100 | 280 | 100 | ||||
| DO2-280 | 110 | 280 | 100 | ||||
| DO5-320 | 120 | 320 | 160 | ||||
| DO1-320 | 80 | 320 | 160 | 4 | |||
| DO6-380 | 100 | 380 | 100 | ||||
| DO4-400 | 110 | 400 | 110 | ||||
| DO7-450 | 120 | 450 | 120 |

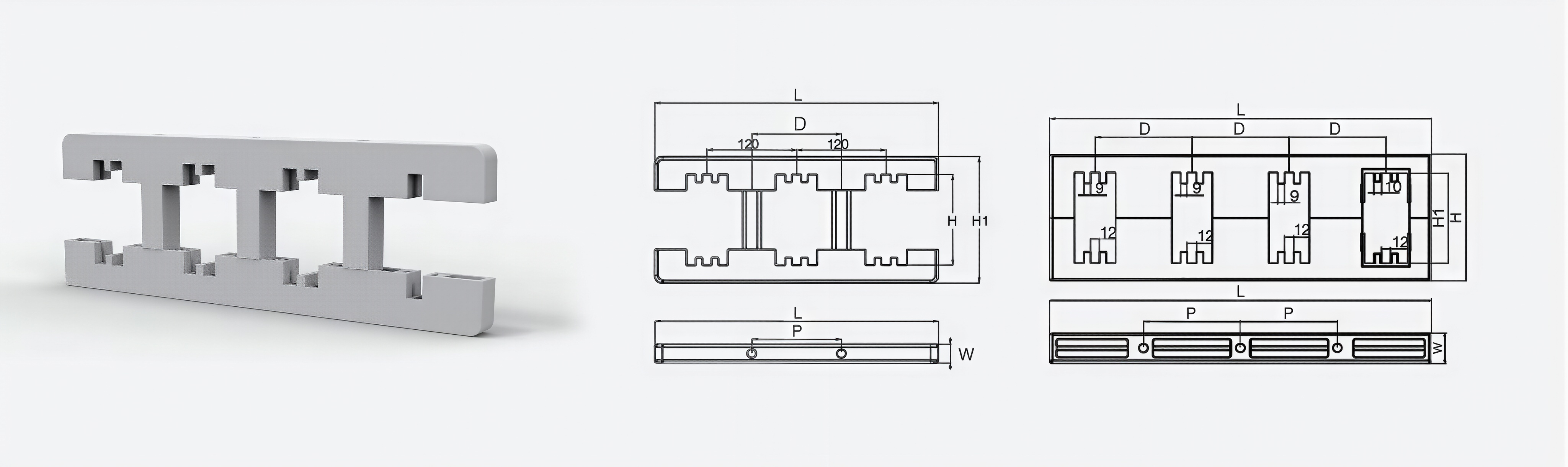

| Model | Apart(D) | Length(L) | Thickness(W) | Pitch-row(P) | Phase number | Specifications | Height(H) |
| DO9-3*3 | 120 | 300 | 30 | 120 | 3 | 80*8 100*10 120*10 125*12 |
130 150 170 175 |
| DO9-3*3 | 130 | 300 | 130 | ||||
| DO9-3*3 | 140 | 400 | 140 | ||||
| DO9-3*3 | 150 | 400 | 150 | ||||
| DO10-3*4 | 140 | 400 | 140 | ||||
| DO11-3*4 | 150 | 505 | 150 | ||||
| DO12-4*3 | 130 | 505 | 130 | 4 | |||
| DO13-4*3 | 140 | 600 | 140 | ||||
| DO15-4*4 | 150 | 600 | 150 | ||||
| DO16-4*4 | 140 | 600 | 140 | ||||
| DO18-4*4 | 150 | 600 | 150 |
