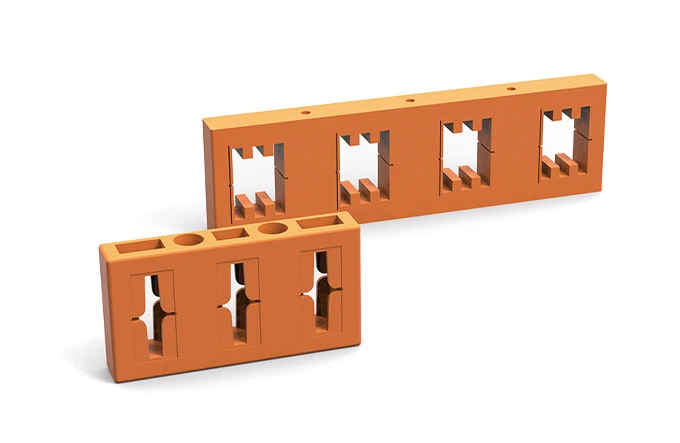

Busbar Clamp

Operating Temperature: -40℃ ~ +140℃

Material: Unsaturated Polyester Resin Fiber Reinforced Molding Compound (BMC)/(SMC)

Color, material properties can be customized according to customer requirements

Note: Add 2mm to the width for heat shrinkage.

Busbar Clamp MD Busbar Clamp PMJ

Get A Quote

Model Meaning

Product Specifications

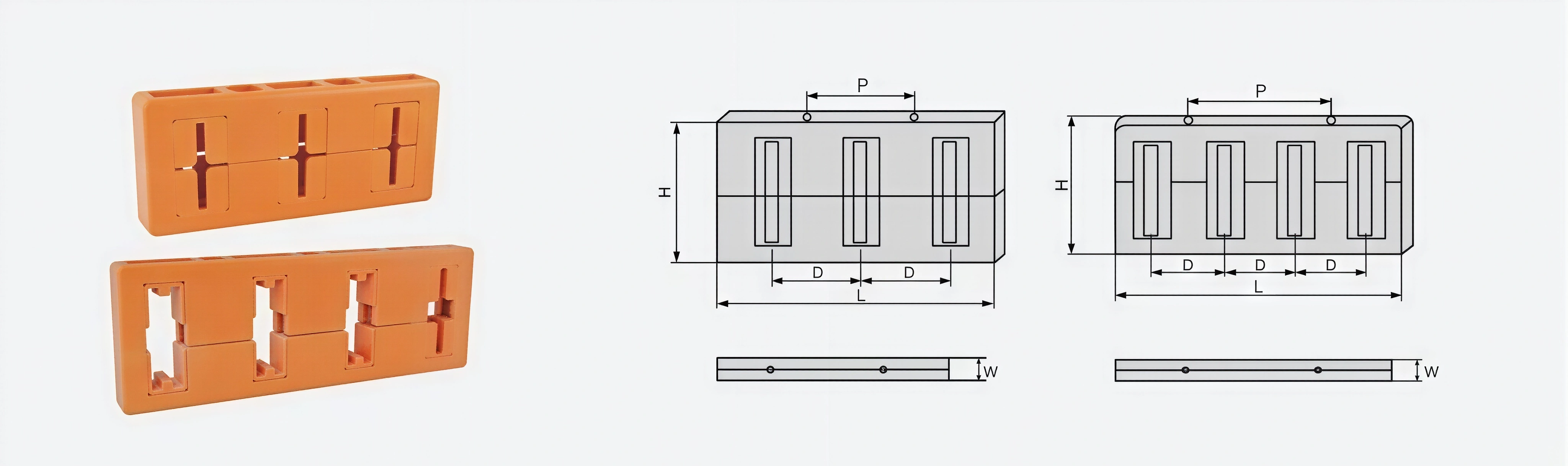

Busbar Clamp MD

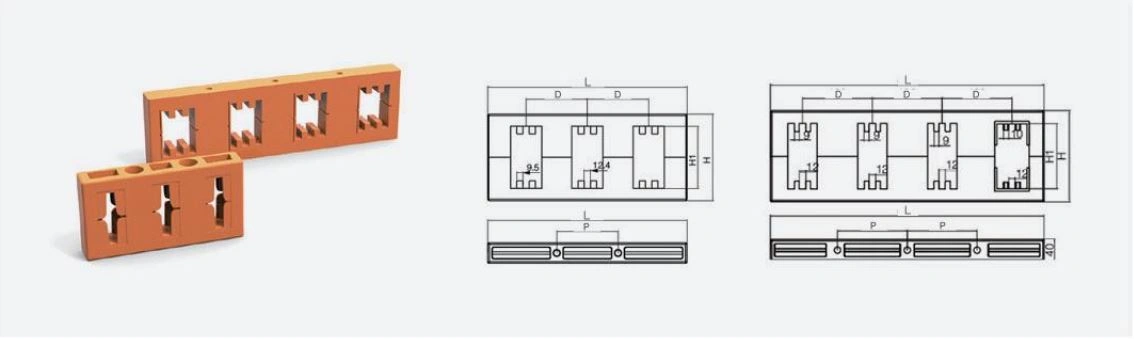

Busbar Clamp PMJ

Model	Apart(D)	Length(L)	Thickness(W)	Pitch-row(P)	Phase number	Specifications	Height(H)
MD3	80	240	40	80	3	40*40	90
MD8	100	290		100		50*5	110
MD2	110	290		110		60*6	110
MD5	120	310		160		80*8	130
PMJ	80	310		160	4	10*80	130
MD6	100	390		100		100*10	150
MD4	110	420		110		120*10	170
MD7	120	460		120		125*12	175

Model	Apart(D)	Length(L)	Thickness(W)	Pitch-row(P)	Phase number	Specifications	Height(H)
PMJ9-3*3	120	390	40	120	3	8010 10010 12010 12512	130 150 170 175
PMJ9-3*3	130	390		130
PMJ9-3*3	150	420		150
PMJ10-3*4	140	420		140
PMJ10-3*4	150	460		150
PMJ11-4*3	120	460		120	4
PMJ11-4*3	130	510		130
PMJ11-4*3	140	510		140
