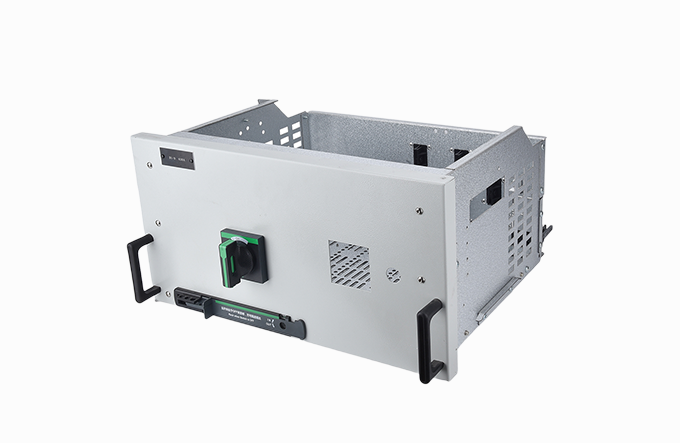

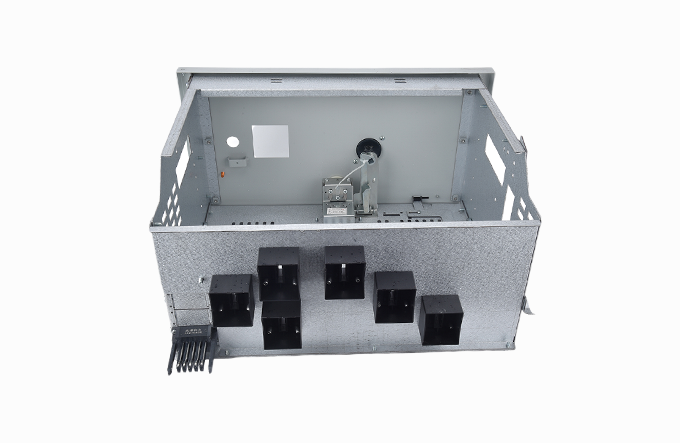

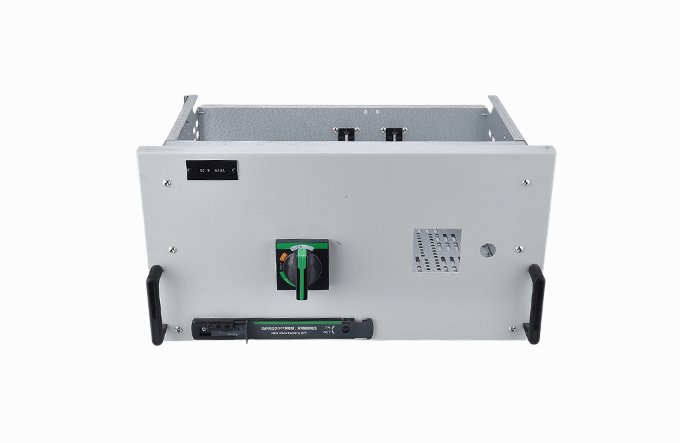

| 6-module expanded design: | Supports 630A main & 400A branch circuits. |
| Comprehensive safety systems: | Including interlock mechanism, anti-falling device, and reliable grounding. |
| Precision rail system: | Ensures stable operation with anti-derailment protection. |
| 6M抽屉NSX-400/630-PCC | ||||||
| No. | Part Number | Part Name | No. | Part Number | Part Name | |
| 1 | 0469031300 | copper nut | 1 | GHQ8012300 | 630A 3P outlet plug | |
| 2 | 0469031200 | roller wheel | 2 | ZQH2505601 | PCC 6M 3P Drawer Fixed Part Back Panel | |
| 3 | AAV3113801 | door bolt | 3 | ZQH2505701 | PCC 6M 3P drawer Moving part back panel | |
| 4 | ZQH2522301 | Drawer inlet/outlet wire support clamp 400-630A | 4 | ZQH2505501 | 6M drawer moving part sliding hinge | |
| 5 | 21217104 | jump ring | 5 | ZQH2505901 | 6M drawer secondary plug-in male plug mounting plate | |
| 6 | ZQH1141301 | Hand-operated mechanism | 6 | ZQH2506001 | NSX400/630 3P Switch Installation Plate | |
| 7 | ZQH1061801 | Distribution chain organization | 7 | ZQH2506101 | Installation plate support pillar | |
| 8 | 87EAV72005 | 400A 3P incoming plug | 8 | ZQH2506201 | PCC 6M 3P drawer's moving part of right panel | |
| 9 | 87EAV72007 | 400A 3P outlet plug | 9 | ZQH2506301 | PCC 6M 3P drawer's moving part of right panel | |
| 10 | LV43259801 | NSX400-630A New Rotating Handle | 10 | ZQH2505201 | PCC 6M 3P Drawers' Door Panels | |
| 11 | LV432598 | NSX400-630A operating mechanism with square bar | 11 | ZQH2879601 | Drawer crossbar | |
| 12 | ZQH1141701 | Location display lock kit | 12 | ZQH2654601 | Drawer anti-falling device | |
| 13 | ZQH2522101 | outlet support guard cover | 13 | ZQH2500901 | Drawer anti-slip plate | |
| 14 | ZQH2521001 | Inlet grille 400 - 630A | 14 | ZQH3358901 | Microswitch blade (for 2M use) | |
| 15 | ZQH2522301 | Outlet grille 630A | 15 | ZQH2064301 | guide rail | |
| 16 | ZQH1555401 | Double-ended plug | 16 | ZQH2500501 | Move the part of the floor | |
| 17 | ZQH1555501 | Secondary socket | 17 | ZQH2508201 | Drawer lock hook | |
| 18 | NNZ22660 | Drawer handle (large) 98.5mm | 18 | ZQH2524201 | Limiting pressure plate | |
| 19 | GHQ8012500 | 630A 3P incoming plug | ||||
-98.5mm-1.webp)
-1.webp)
We provide in-depth personalized customization solutions, covering the entire process from technical drawings to component configuration. Our team of professional engineers will develop perfectly matched technical drawing solutions based on your specific application scenarios, cabinet structure, and functional requirements.
For component combinations, we support flexible configurations:
Optional primary plugs with different current ratings (400A-630A)
Various handle and pull-handle specifications available
Customizable operation indicator plates in different colors
Optional high-performance components such as anti-sag hinges
We provide full technical support, including guidance on selection, installation and commission. Our professional engineers provide multilingual assistance to resolve any technical issues.
We offer three training options: on-site guidance, factory training, and online courses. Through systematic training, we ensure your team masters the installation, commissioning, and maintenance skills for drawer units.
We have established a robust spare parts supply system to ensure you can quickly obtain genuine replacement parts when needed. Our global logistics network supports urgent orders, minimizing equipment downtime to the greatest extent.
