| Space-saving 3M design: | Supports 250A main & 125A branch circuits. |
| Complete safety protection: | Interlock, anti-falling, and silver-plated grounding. |
| Precision rail system: | Anti-derailment with smooth operation. |

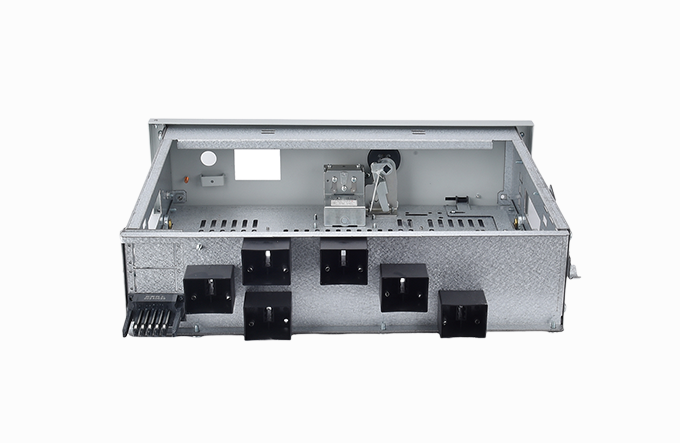

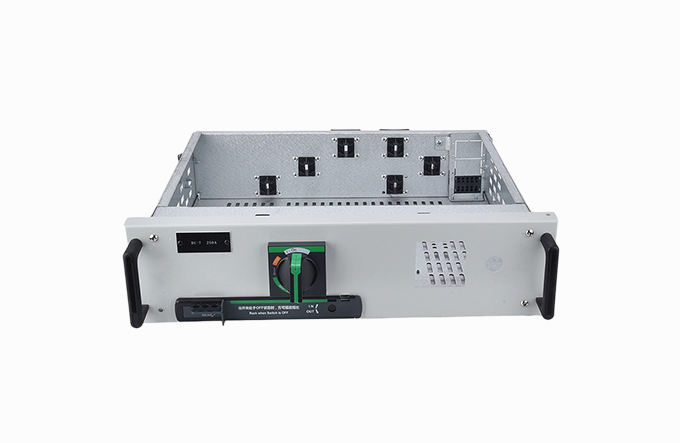

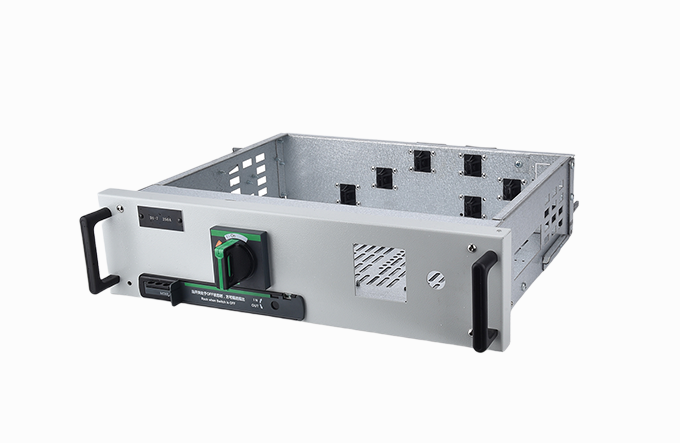

| 3M Drawer NSX-100~250A PCC | ||||||
| No. | Part Number | Part Name | No. | Part Number | Part Name | |
| 1 | 0469031300 | Copper Nut | 1 | NNZ22660 | Drawer handle (large) 98.5mm | |
| 2 | 0469031200 | Roller Wheel | 2 | ZQH2500101 | PCC 3M 3P Drawer Fixed Part Back Panel | |
| 3 | AAV3113801 | Door bolt | 3 | ZQH2505401 | PCC 3M 3P drawer Moving part back panel | |
| 4 | 0469007400 | Drawer inlet/outlet wire support clamp 100-250A | 4 | ZQH2501201 | 3M drawer sliding hinge for the moving part | |
| 5 | 21217104 | Jump ring | 5 | ZQH2500601 | 3M drawer secondary plug-in male plug mounting plate | |
| 6 | ZQH1141301 | Hand-operated mechanism | 6 | ZQH2501002 | NSX100/250 3P Switch Installation Plate | |
| 7 | ZQH1062001 | Distribution chain organization | 7 | ZQH2500801 | PCC 3M 3P drawer's moving part of right panel | |
| 8 | GHQ8012600 | 250A incoming plug | 8 | ZQH2500701 | PCC 3M 3P drawer's moving part of left panel | |
| 9 | GHQ8012400 | 250A outlet plug | 9 | ZQH2505101 | PCC 3M 3P drawer door panel | |
| 10 | LV42933801 | NSX100-250A New Rotating Handle | 10 | ZQH2879601 | Drawer crossbar | |
| 11 | LV429338 | NSX100-250A operating mechanism with square bar | 11 | ZQH2654601 | Drawer anti-falling device | |
| 12 | ZQH1141701 | Location display lock kit | 12 | ZQH2500901 | Drawer anti-slip plate | |
| 13 | ZQH2522101 | Outlet support guard cover | 13 | ZQH3358901 | Microswitch blade (for 2M use) | |
| 14 | ZQH2521901 | Inlet grille 100 - 250A | 14 | ZQH2064301 | guide rail | |
| 15 | ZQH2522001 | Outlet grille 250A | 15 | ZQH2500501 | Move the part of the floor | |
| 16 | ZQH1555401 | Double-ended plug | 16 | ZQH2508201 | Drawer lock hook | |
| 17 | ZQH1555501 | Secondary socket | 17 | ZQH2524201 | Limiting pressure plate | |
-98.5mm-1.webp)
-1.webp)
-1.webp)
We provide in-depth personalized customization solutions, covering the entire process from technical drawings to component configuration. Our team of professional engineers will develop perfectly matched technical drawing solutions based on your specific application scenarios, cabinet structure, and functional requirements.
For component combinations, we support flexible configurations:
Optional primary plugs with different current ratings (100A-250A)
Various handle and pull-handle specifications available
Customizable operation indicator plates in different colors
Optional high-performance components such as anti-sag hinges
We provide full technical support, including guidance on selection, installation and commission. Our professional engineers provide multilingual assistance to resolve any technical issues.
We offer three training options: on-site guidance, factory training, and online courses. Through systematic training, we ensure your team masters the installation, commissioning, and maintenance skills for drawer units.
We have established a robust spare parts supply system to ensure you can quickly obtain genuine replacement parts when needed. Our global logistics network supports urgent orders, minimizing equipment downtime to the greatest extent.
