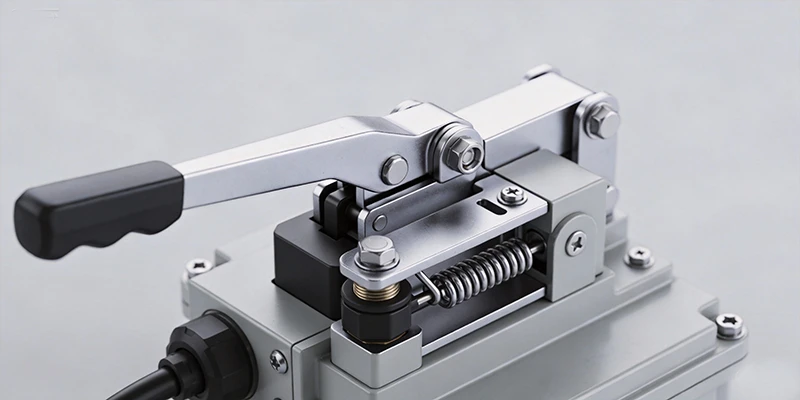

Hand pull mechanisms are critical components in modern electrical switchgear systems, providing safe and reliable operation of unit drawers in low-voltage distribution cabinets. These mechanisms enable precise positioning and ensure compliance with safety procedures, fundamentally eliminating the risk of misoperation.
XHONELE, operating under the Moldvolt brand, offers a comprehensive range of hand pull mechanisms designed for various switchgear systems including MNS, GCS, and GCK. With over 15 years of expertise in precision components and technical support for high/low-voltage drawer cabinets, the company has established itself as a trusted provider in the industry.

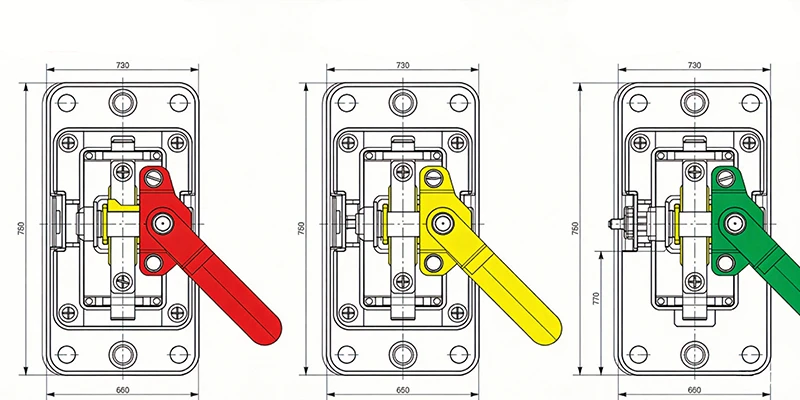

All Moldvolt hand pull mechanisms feature three distinct and locked positions:
This three-position design ensures proper sequence of operations and prevents dangerous misconfiguration of electrical systems.
With mechanical interlock accuracy of ±0.5mm, Moldvolt mechanisms provide precise positioning and reliable operation. This high level of precision ensures that electrical contacts are properly synchronized with the mechanical position, preventing arc flash and other electrical hazards.
Moldvolt hand pull mechanisms are built to withstand demanding industrial environments, with a lifespan exceeding 10,000 cycles. This durability ensures long-term reliability and reduces maintenance costs over the equipment's lifetime.
All products meet globally recognized standards including UL and CE certifications, enabling seamless entry into target markets worldwide. This compliance ensures that Moldvolt mechanisms meet the highest safety and performance requirements.
XHONELE offers several models of hand pull mechanisms to suit different switchgear applications:
The AK-III model is designed for use in various switchgear systems, providing reliable three-position operation with precise mechanical interlocking. This model features a robust construction and ergonomic design for ease of operation.
The HSL-2 integrated hand pull mechanism combines operating functions with safety interlocking features in a single compact unit. This model is ideal for applications where space is limited but safety cannot be compromised.
The XH-2 model provides comprehensive safety interlocking for unit drawers, ensuring that drawers cannot be opened when the circuit breaker is closed. This feature prevents accidental contact with live electrical components during maintenance operations.

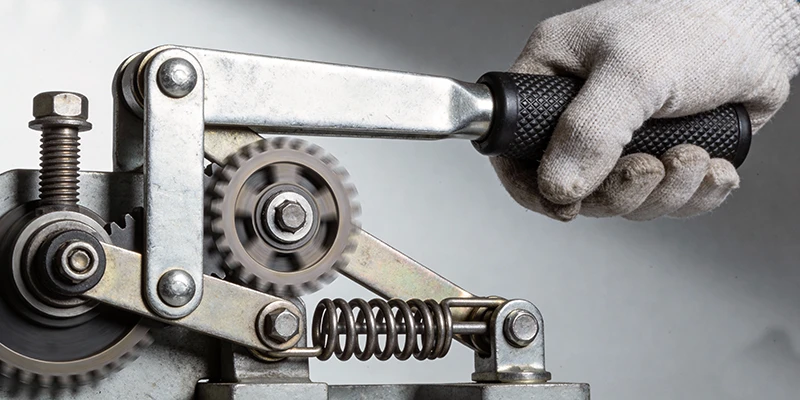

The XH-3 is specifically designed for 250A switchgear applications, providing high-current capacity while maintaining the same level of precision and safety features as other Moldvolt models.
Moldvolt hand pull mechanisms incorporate several key safety features to protect personnel and equipment:
This feature prevents the drawer from being withdrawn when the circuit breaker is closed, ensuring that maintenance operations can only be performed when the electrical system is safely isolated.
Clear visual and audible cues confirm the drawer's position, providing operators with immediate feedback on the status of the switchgear system.
The interlocking system ensures that electrical contacts are synchronized with the mechanical position, preventing dangerous electrical arcs and ensuring safe operation at all times.
XHONELE offers more than just high-quality hand pull mechanisms - the company provides comprehensive support throughout the entire project lifecycle:
With over 2000 component specifications covering mainstream cabinet types, XHONELE streamlines procurement and reduces inventory risks for customers.
The company provides comprehensive documentation and training from drawings to assembly, addressing technical gaps and ensuring successful project implementation.
XHONELE's commitment to innovation is demonstrated through 38 patents, ensuring that products incorporate the latest technological advancements in electrical switchgear components.
All products meet globally recognized standards, enabling seamless entry into target markets and ensuring compliance with local regulations.
Hand pull mechanisms are used in a wide range of electrical switchgear applications:
In data center power systems, hand pull mechanisms ensure safe and reliable operation of distribution cabinets, minimizing downtime and protecting critical IT infrastructure.
In manufacturing plants and industrial facilities, these mechanisms provide safe access to electrical components during maintenance operations, reducing the risk of electrical accidents.
In commercial buildings, hand pull mechanisms are used in low-voltage distribution systems to ensure safe and efficient power distribution throughout the facility.
In solar and wind energy installations, these mechanisms provide safe isolation of electrical components during maintenance and repair operations.
Proper maintenance of hand pull mechanisms is essential to ensure long-term reliability and safety:
Hand pull mechanisms are essential components in modern electrical switchgear systems, providing safe and reliable operation of unit drawers. Moldvolt hand pull mechanisms from XHONELE offer precision, safety, and reliability, with a range of models to suit different applications.
With over 15 years of expertise, 38 patents, and internationally certified quality, XHONELE is a trusted provider of high-quality electrical components. The company's comprehensive support ensures successful project implementation and long-term customer satisfaction.If you have any questions, please feel free to contact us.
