Disconnect Position: Displays "DISCONNECT" status, with both primary and secondary circuits isolated.
Disconnect → Test: Rotate the mechanism clockwise. The drawer moves and an audible "click" indicates entry into the TEST position. At this stage, the primary circuit remains isolated while the secondary circuit is energized.
Test → Connect: Continue rotating clockwise. Another "click" confirms the CONNECT position. Both primary and secondary circuits are now fully energized.
Switch Closing: Remove the crank handle. The circuit breaker can now be closed. Once closed, the handle socket is automatically blocked, preventing re-insertion.
Withdrawal: Rotate the mechanism counterclockwise to retract the drawer sequentially back to DISCONNECT. The drawer can then be safely withdrawn from the cabinet.

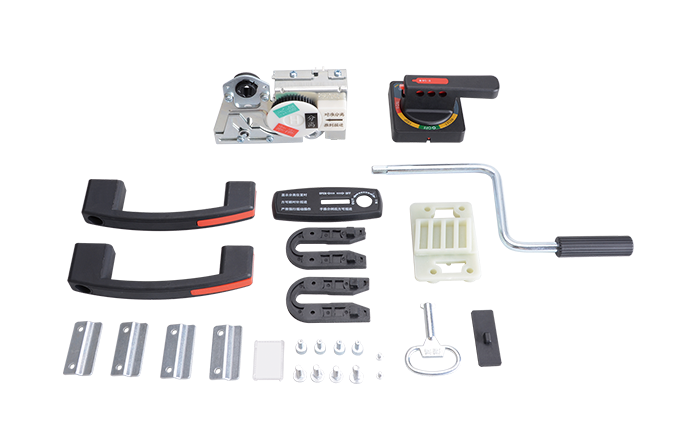

HJG-9 Operation Instructions

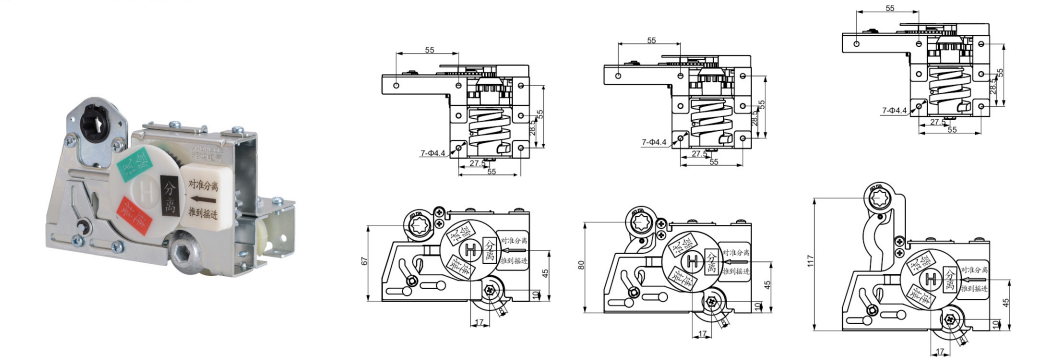

HJG-9 Hand-Crank Mechanism

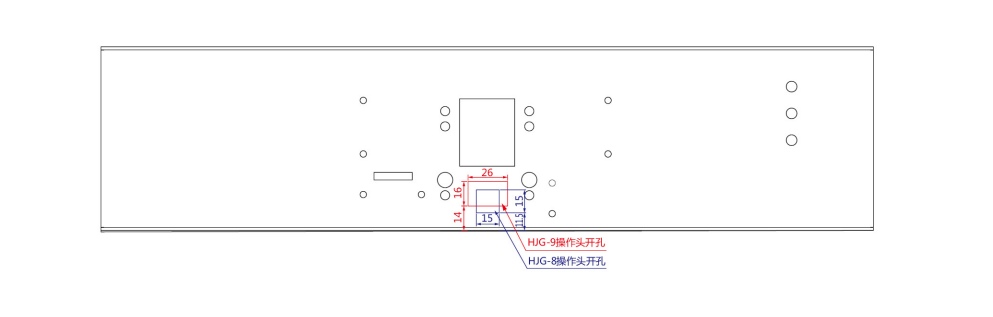

Comparison of Operating Head Cutouts Between HJG-8 and HJG-9

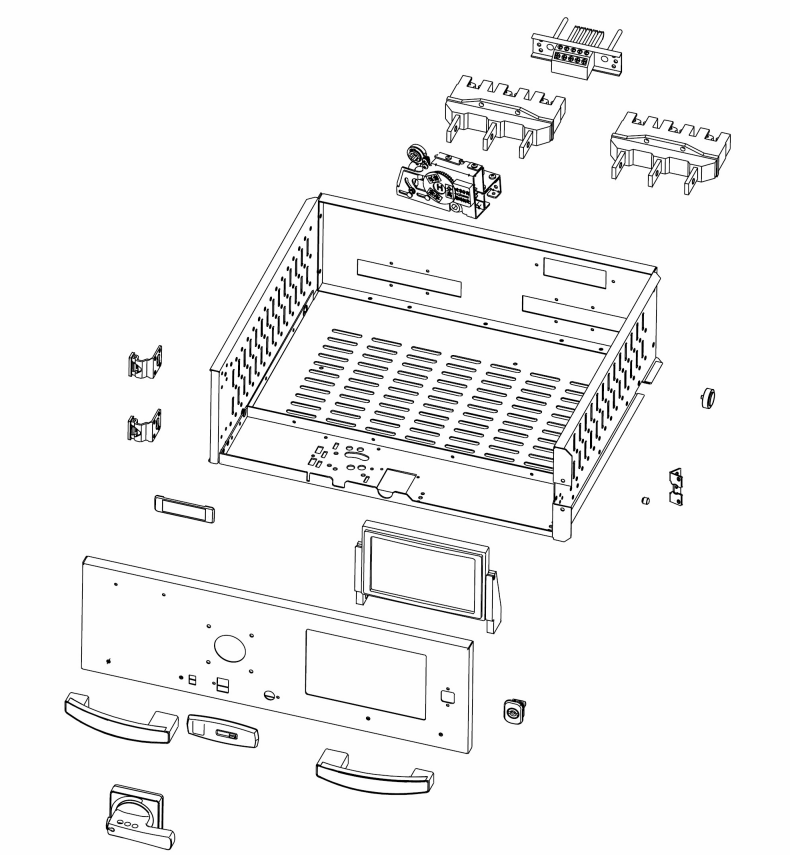

HJG-9 Hand-Crank Mechanism Drawer Assembly Exploded View

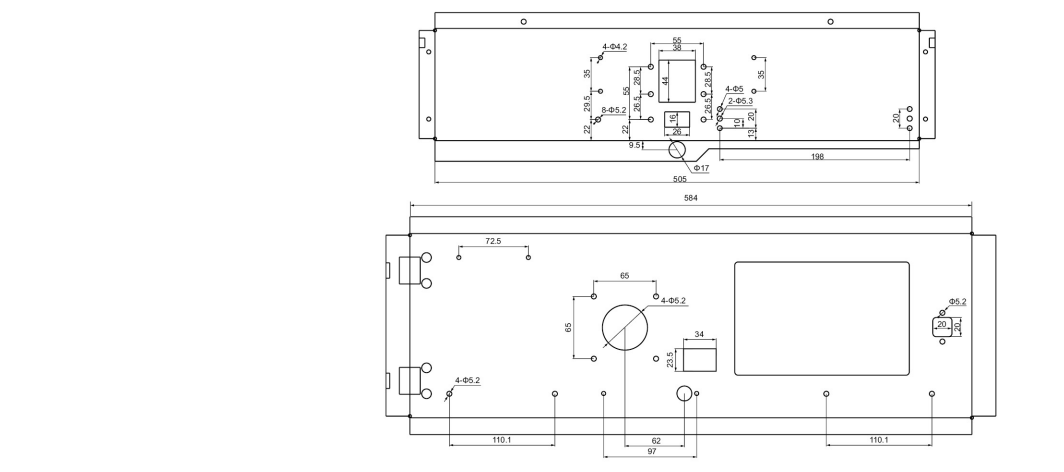

Attachment mages and Dimensions
HJG-8 Cam Positioning Component (Reinforced Nylon) HJG-8 Cam Positioning Component Partition Cutout Diagram
HJG-9 Cam Positioning Component (Reinforced Nylon) HJG-9 Cam Positioning Component Partition Cutout Diagram
U-Shaped Guide Block M5 Guide Pin M6 Positioning Pin
HJG-8 Operation Indicator Plate
Limit Clamp (Universal Component)
HJG-9 Hand-Crank Mechanism Indicator Frame
Large Observation Window (Universal Component)
Small Observation Window (Universal Component)
Cranking Handle (Universal Component)
HJG-8/9 Built-in Mechanism Operation Manual
Effort-Saving Advancement Mechanism Principle and Operating Procedure
DISCONNECT Position：Align to this position to display "DISCONNECT". The drawer can be cranked clockwise at this stage. Both primary and secondary circuits remain disconnected.
DISCONNECT → TEST：Turn clockwise from the DISCONNECT position until the display shows "TEST".
TEST → CONNECT：Continue turning clockwise until "CONNECT" is displayed. Both primary and secondary circuits are now energized. Remove the crank handle to close the main switch. Once closed, the handle socket is automatically blocked, preventing further insertion or withdrawal of the drawer.
Important Note：The drawer must be fully pushed into position when aligned at DISCONNECT before cranking. Do not apply excessive clockwise force when the display already indicates CONNECT position to avoid mechanism damage.
HJG-8 Closing Interlock
Open State (Breaker Off) Closed State (Breaker On)
Fault Trip State Reset State
