TSM Busbar Insulator

Model: TSM

Screw: M6/M10/M12

Material: DMC, BMC

Voltage: 660V-4500

Flame Retardant: UL94-V0

Customized: Yes

Application: Insulation Support

Get A Quote

Product Overview

TSM busbar insulator is octagonal, made of DMC ,used for low voltage application(660V-4500V) ,such as distribution box, switchgear ,inverter
and green power and so on.
CE,SGS ,ROHS certificate for octagonal insulator.

Product Specifications

Model	Diameter (D) (mm)	Height (H) (mm)	Screw (S)	Customized
TSM20	17	20	M5	According customer's requirement
TSM30	30	30	M6
TSM402	30	40	M6
TSM401	40	40	M8
TSM40	50	40	M10
TSM50	55	50	M10
TSM55	60	55	M10
TSM70	50	70	M10

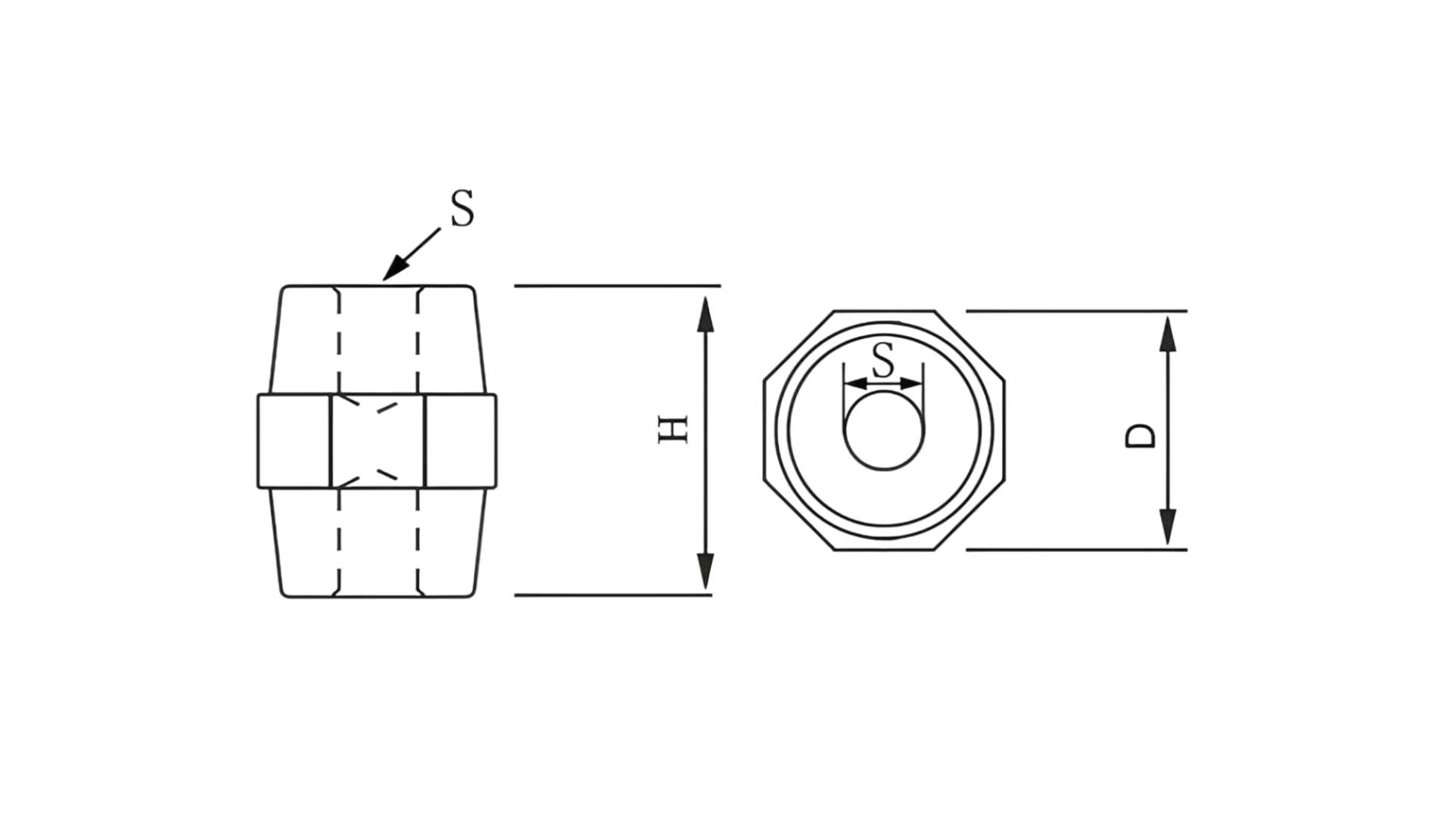

Structure Diagram
