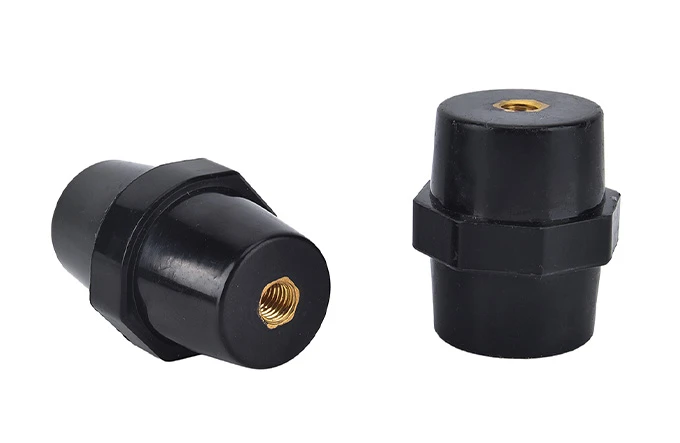

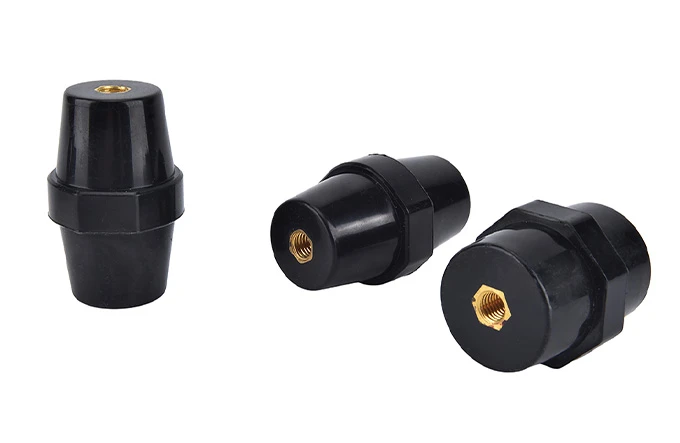

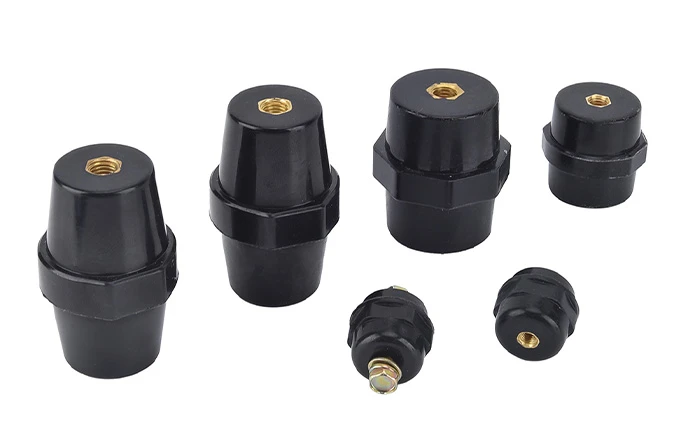

SM Busbar Insulator (Black)

Model: SM

Material: DMC, BMC

Customized: Yes

Screw: Metric/Imperial

Flame Retardant: UL94-V0

Application: Insulation Support

Get A Quote

Product Overview

SM busbar insulator is drum,made of DMC, used for low voltage application (660V-4500V), such as distribution box, switchgear, inverter and green power and so on.

CE, SGS, ROHS certificate for drum insulator.

Product Specifications

Model	Diameter (D) (mm)	Height (H) (mm)	Screw (S)	Customized
SM20	17	20	M5/M6	According customer's requirement
SM25	30	25	M5/M6
SM30	32	30	M6/M8
SM35	32	35	M6/M8
SM40	40	40	M6/M8
SM45	36	45	M6/M8
SM51	36	51	M8/M10
SM60	46	60	M8/M10
SM76	50	76	M10/M12
SM80	50	80	M10/M12
SM100	65	100	M10/M12

Structure Diagram

Related News

2026/06/01

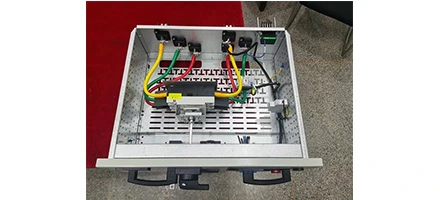

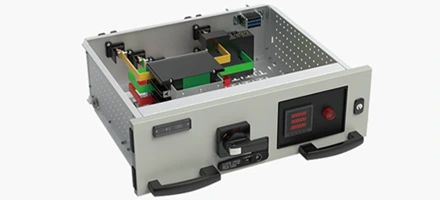

How to Insert a Drawer Unit Safely
