Model: SEP
Screw: M6/M8/M10/M12/M14/M16
Material: DMC, BMC
Voltage: 660V-4500V
Flame Retardant: UL94-V0
Customized: Yes
Application: Insulation Support

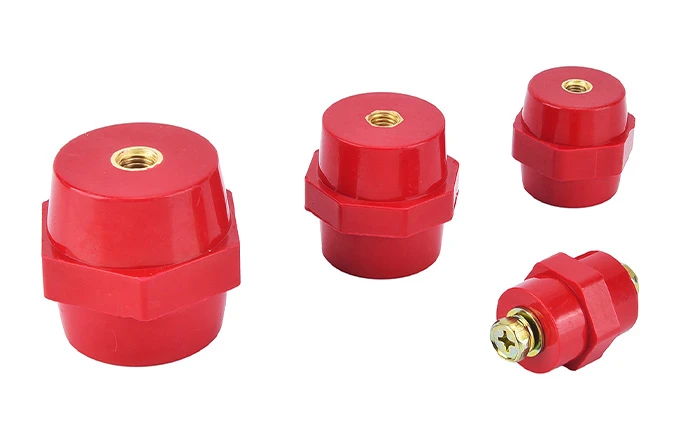

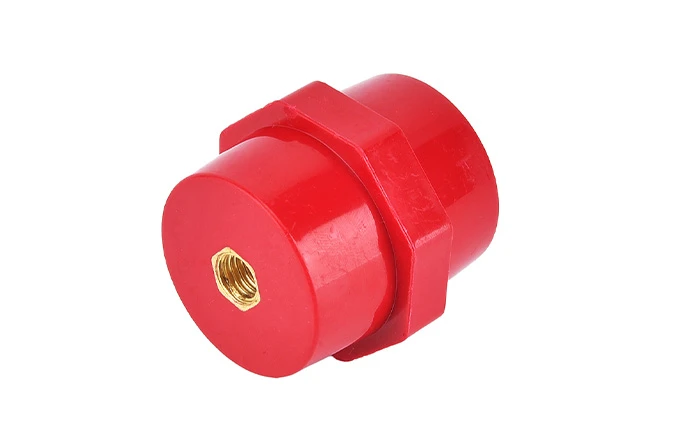

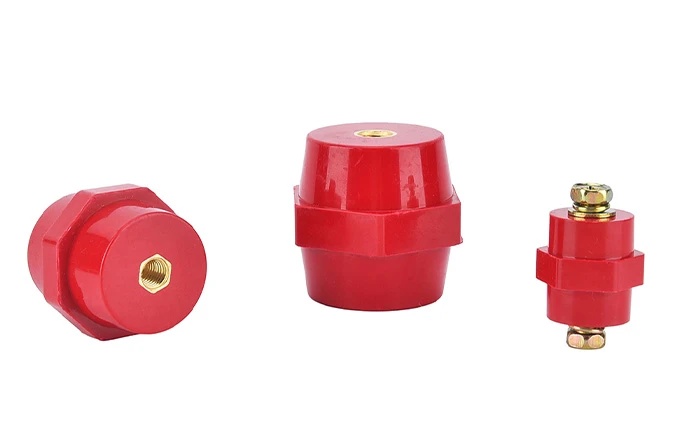

SEP busbar insulator is hexagonal, ROHS, UL94 V0, made of DMC, used for low voltage application (660V-4500V), such as distribution box, switchgear, inverter and green power and so on.
CE, SGS, ROHS certificate for hexagonal insulator.
| Model | Diameter (D) (mm) | Height (H) (mm) | Screw (S) | Customized |
| SEP1615 | 15 | 16 | M4/M5 | According customer's requirement |
| SEP2019 | 19 | 20 | M4/M5/M6 | |
| SEP2519 | 19 | 25 | M5/M6 | |
| SEP2522 | 22 | 25 | M4/M5/M6 | |
| SEP2525 | 25 | 25 | M8 | |
| SEP3030 | 30 | 30 | M6/M8/M10 | |
| SEP3040 | 40 | 30 | M8/M10 | |
| SEP3532 | 32 | 35 | M8/M10 | |
| SEP3540 | 40 | 35 | M8/M10 | |
| SEP3541 | 41 | 35 | M6/M8/M10 | |
| SEP4041 | 41 | 40 | M8/M10/M12 | |
| SEP4046 | 46 | 40 | M8/M10/M12 | |
| SEP4546 | 46 | 45 | M8/M10/M12 | |
| SEP5036 | 36 | 50 | M6/M8/M10 | |
| SEP5046 | 46 | 50 | M8/M10 | |
| SEP5050 | 50 | 50 | M8/M10/M12 | |
| SEP6060 | 60 | 60 | M8/M10/M12 | |
| SEP6541 | 41 | 65 | M8/M10/M12 | |
| SEP7060 | 60 | 70 | M10/M12/M16 | |
| SEP7550 | 50 | 75 | M8/M10/M12 | |
| SEP10050 | 50 | 100 | M10/M12/M16 |
