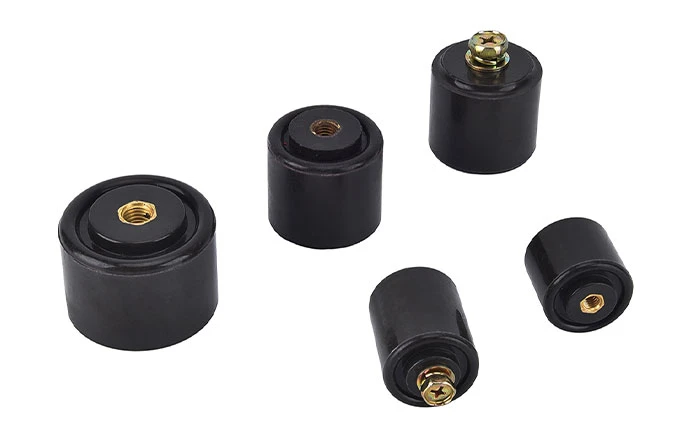

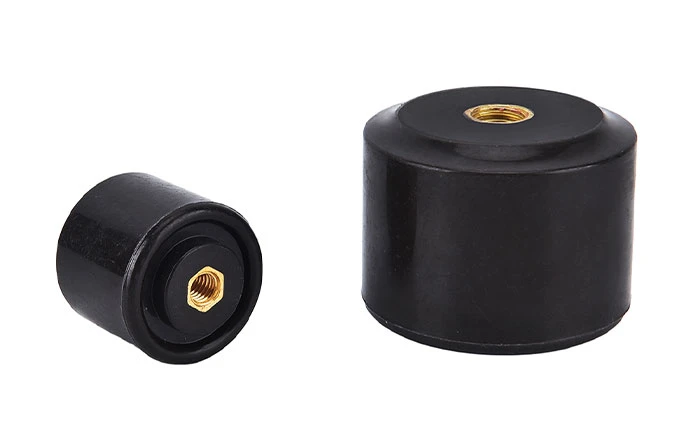

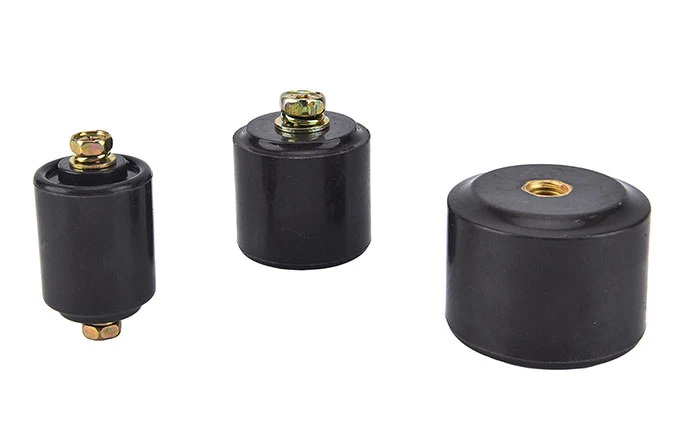

SE Busbar Insulator

Model: SE

Screw: M6/M8/M10

Material: DMC,BMC

Voltage: 660V-4500V

Flame Retardant: UL94-VO

Type: Terminal

Customized: Yes

Application: Insulation Support

Get A Quote

Product Overview

SE busbar insulator is made of DMC, used for low voltage application (660V-4500V), such as distribution box, switchgear, inverter and green power and so on.

CE, SGS, ROHS certificate for SE insulator.

Model Meaning

Product Specifications

Model	Diameter (D) (mm)	Height (H) (mm)	Screw (S)	Customized
SE3030	30	30	M6	According customer's requirement
SE3040	30	40	M6
SE4040	40	40	M8
SE4060	40	60	M10
SE5040	50	40	M10

Structure Diagram
