Operating Temperature: -40℃ ~ +140℃
Nut: Brass, Iron
Material: Unsaturated Polyester Resin Fiber Reinforced Molding Compound (BMC)/(SMC)
Color, conditions, material properties can be customized according to customer requirements
SB half-pole series pole lengths can be customized.

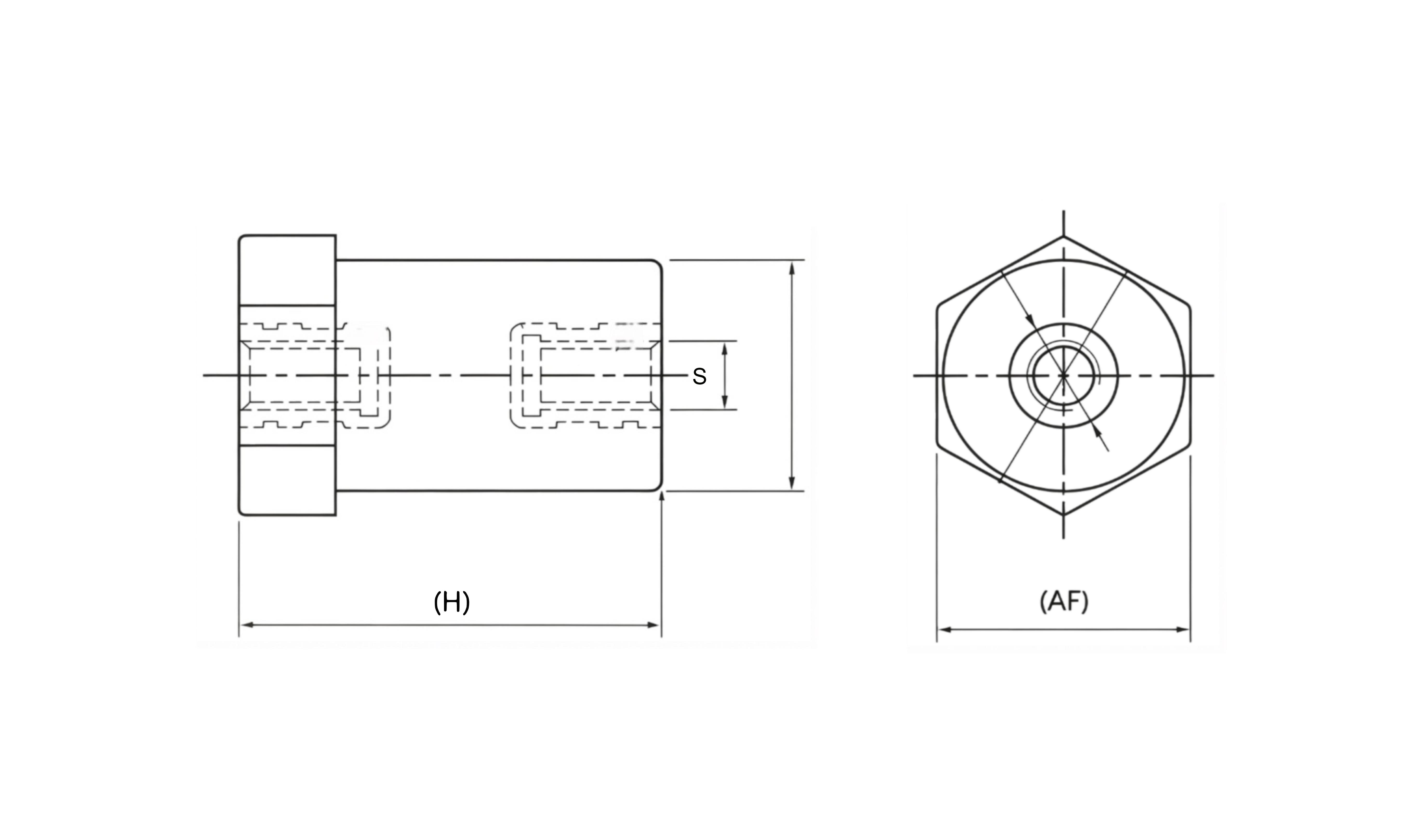

| Name | Diameter（mm） | Height（mm） | Screw | NOTE | ||||
| SB Busbar Insulator | 8 | 10 | M3 | According customer's requirement | ||||
| 10 | 11.7/15/20/25/30 | M3/M4 | ||||||
| 12 | 14/15/20/25/30 | M3/M4 | ||||||
| 14 | 14/16/18/20/25/30/35/40/45/50 | M5/M6 | ||||||
| 16 | 1618/20/25/30/35/40/45/50/55 | M5/M6 | ||||||
| 20 | 16/18/20/25/30/35/40/45/50/55/90 | M5/M6/M8 | ||||||
| 30 | 30/35/40/50/60 | M6/M8/M10/M12 | ||||||
| 35 | 30/35/40/45/50/55/60/65 | M6/M8/M10/M12 | ||||||
| 40 | 30/35/40/45/50/55/60/65/70 | M6/M8/M10/M12 | ||||||
| 60 | 30/35/40/45/50/55/60/65/70/75/80 | M6/M8/M10/M12 | ||||||
