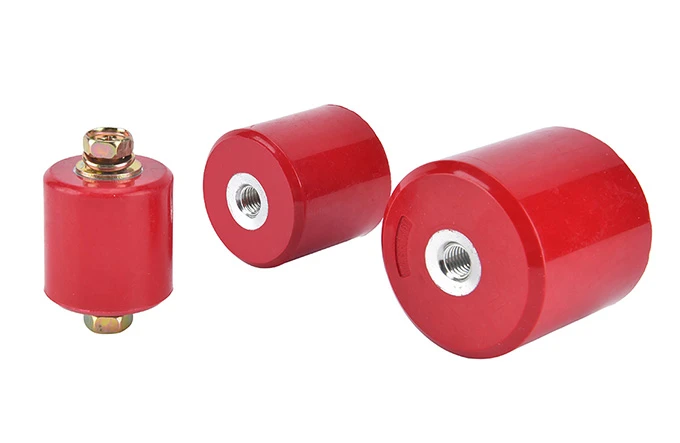

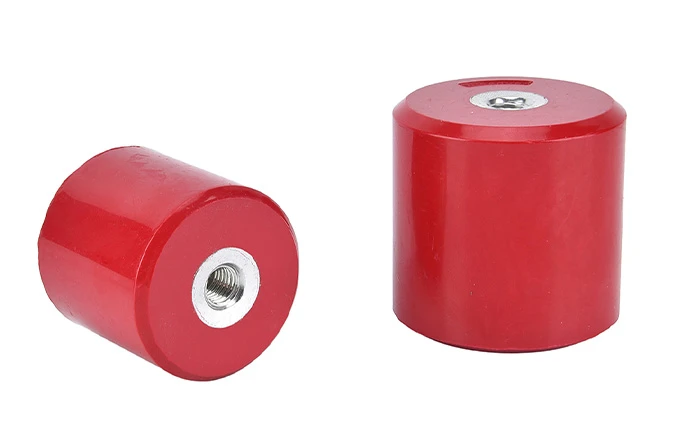

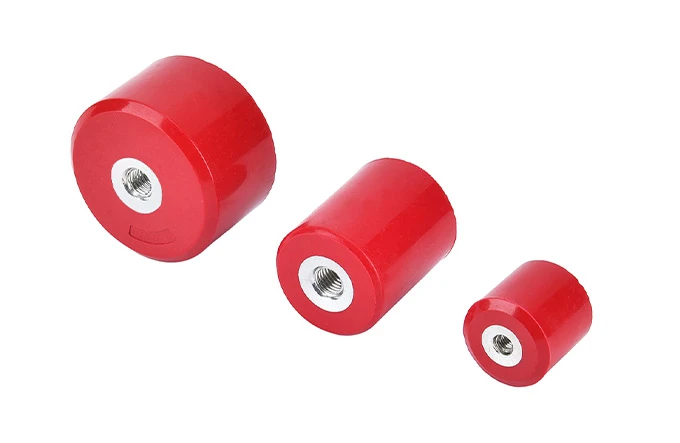

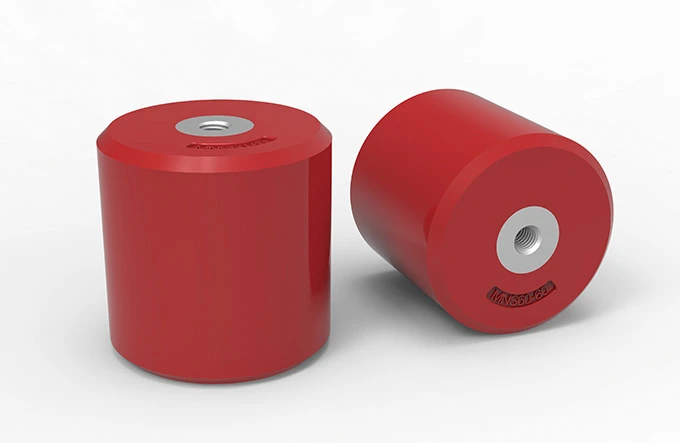

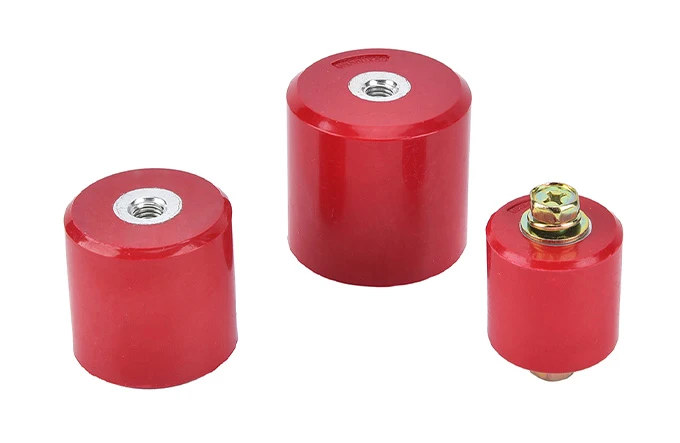

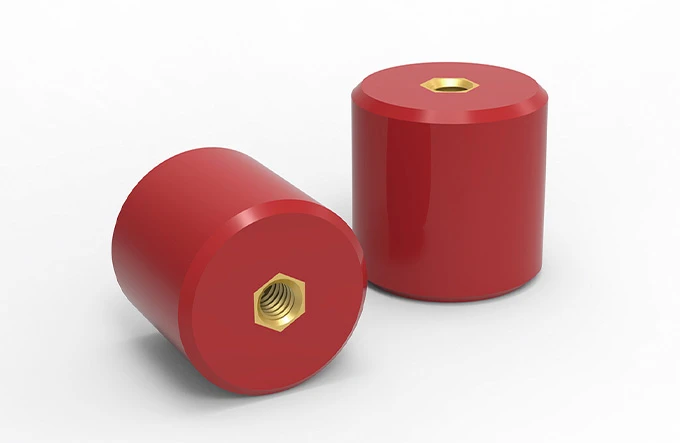

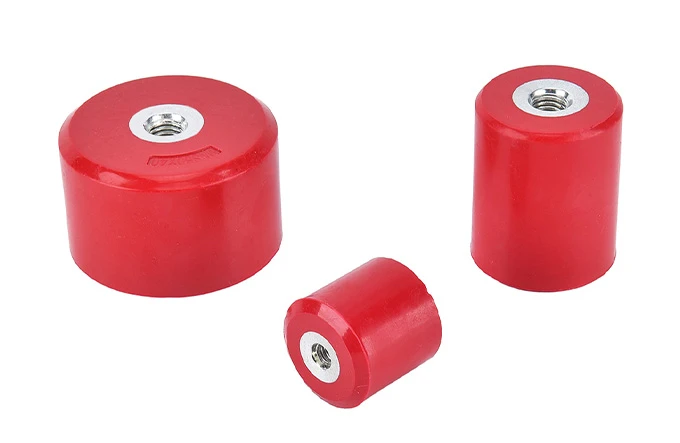

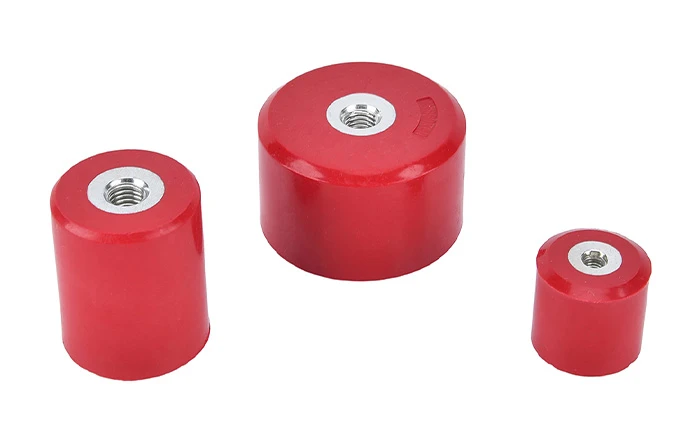

Product Overview

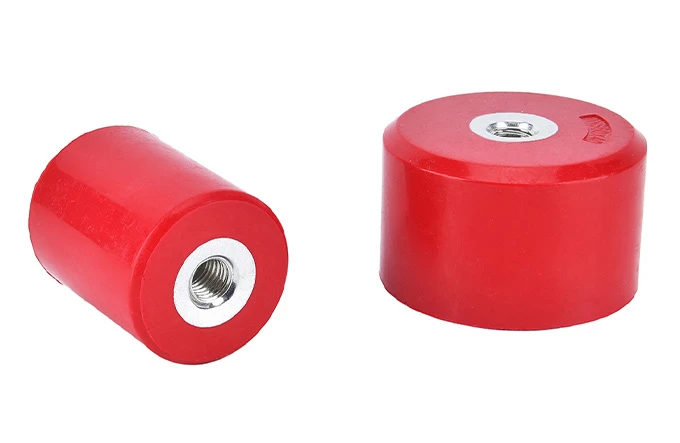

MNS busbar insulator is made of DMC, used for low voltage application (660V-4500V), such as distribution box, switchgear, inverter and green power and so on.

CE, SGS, ROHS certificate for cylindrical insulator.

Model Meaning

Product Specifications

Model	Diameter (D) (mm)	Height (H) (mm)	Screw (S)	Customized
MNS16×15	16	15	1/4,M6	According customer's requirement
MNS16×20	16	20	1/4,M6
MNS16×25	16	25	1/4,M6
MNS16×30	16	30	1/4,M6
MNS16×35	16	35	1/4,M6
MNS16×40	16	40	1/4,M6
MNS20×20	20	20	1/4,M6
MNS20×25	20	25	1/4,M6
MNS20×30	20	30	1/4,M6
MNS20×35	20	35	1/4,M6
MNS20×40	20	40	1/4,M6
MNS20×45	20	45	1/4,M6
MNS20×50	20	50	1/4,M6
MNS25×25	25	25	1/4,M6
MNS25×30	25	30	1/4,M6
MNS25×35	25	35	1/4,M6
MNS25×40	25	40	1/4,M6
MNS25×45	25	45	1/4,M6
MNS25×50	25	50	1/4,M6
MNS25×60	25	60	1/4,M6
MNS30×30	30	30	M6,M8
MNS30×40	30	40	M6,M8
MNS30×50	30	50	M6,M8
MNS30×60	30	60	M6,M8
MNS30×100	30	100	M6,M8
MNS40×30	40	30	M6,M8,M10
MNS40×40	40	40	M6,M8,M10
MNS40×50	40	50	M6,M8,M10
MNS40×60	40	60	M6,M8,M10
MNS40×70	40	70	M6,M8,M10
MNS40×80	40	80	M6,M8,M10
MNS50×40	50	40	M6,M8,M10,M12
MNS50×50	50	50	M6,M8,M10,M12
MNS50×60	50	60	M6,M8,M10,M12
MNS50×70	50	70	M6,M8,M10,M12
MNS50×80	50	80	M6,M8,M10,M12
MNS60×40	60	40	M6,M8,M10,M12
MNS60×50	60	50	M6,M8,M10,M12
MNS60×60	60	60	M6,M8,M10,M12
MNS60×70	60	70	M6,M8,M10,M12
MNS60×80	60	80	M6,M8,M10,M12
MNS60×90	60	90	M6,M8,M10,M12
MNS60×100	60	100	M6,M8,M10,M12
MNS70×70	70	70	M6,M8,M10,M12
MNS70×80	70	80	M6,M8,M10,M12
MNS70×90	70	90	M6,M8,M10,M12
MNS70×100	70	100	M6,M8,M10,M12
MNS70×110	70	110	M6,M8,M10,M12

Structure Diagram
