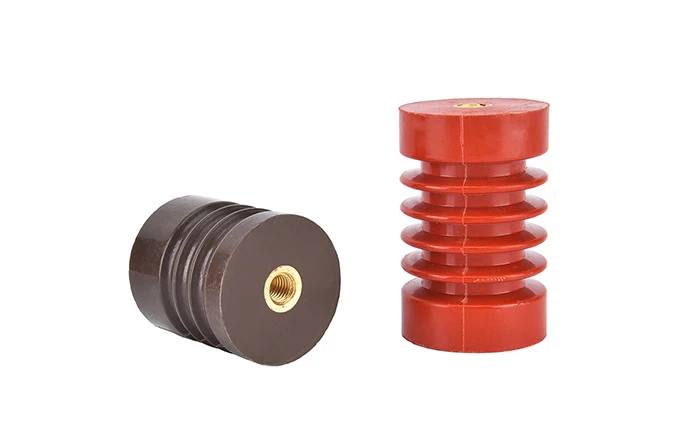

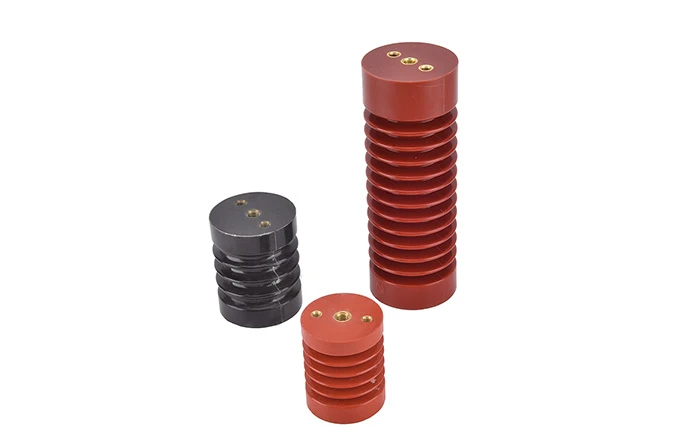

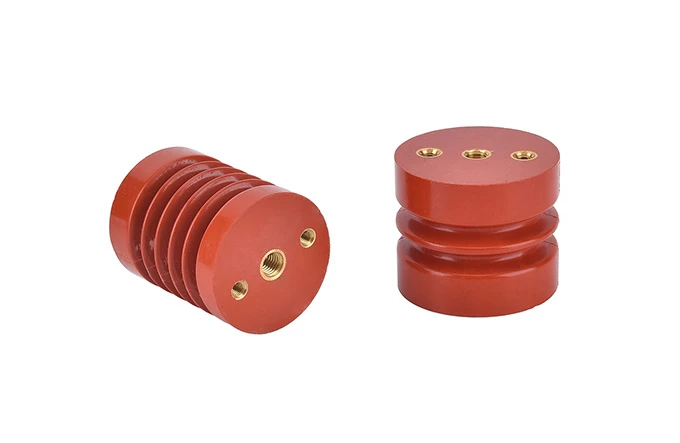

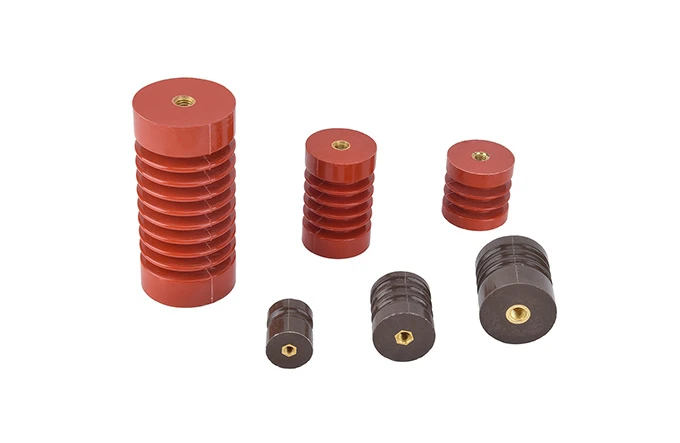

High Voltage Insulator

GB high voltage insulator listed in sample all adopt epoxy vacuum pouringtechnology for one-time molding, kinds of bushing, contact box, insulating cylinder and bell housing etc adopt APG technology for molding. While,some product adopt SMC, DMC un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large volt switchboard.

Get A Quote

Product Overview

For some product and specification size owning special requirement,it could be designed and manufactured according to user demand.

Applicable to all shoppingmalls,supermarkets, nationalgrids,substations, power energy, urban power and other fields.

Mainly used in switch cabinets, power stations, outdoor high voltage, switchgear,etc.

Model Meaning

Product Specifications

Model	Diameter (D) (mm)	Height (H) (mm)	Screw (S)	Customized
EL-3M	70	60	M10	According customer's requirement
EL-6M	70	90	M10
GB-3M	70	60	M10
GB-6M	70	90	M10
GB-12	58	130	M10
GB-15	70	142	M10/M8
GB-20	70	175	M10/M12
GB-24	70	210	M10/M12
GB-35	100	260/280	M10/M12
GB-35	80	300/320/350/360	M16
76:120	76	120	M16

Structure Diagram
