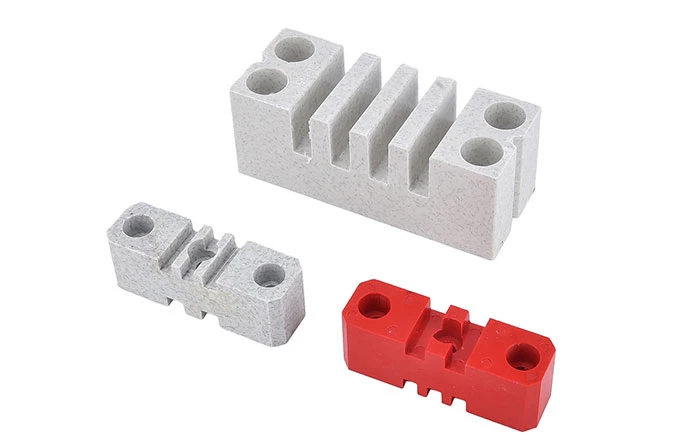

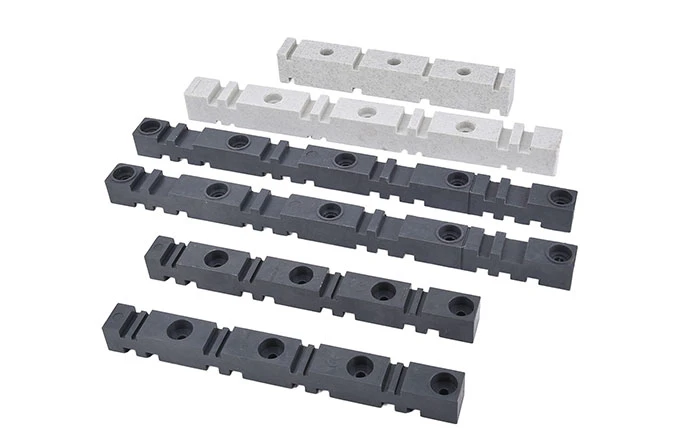

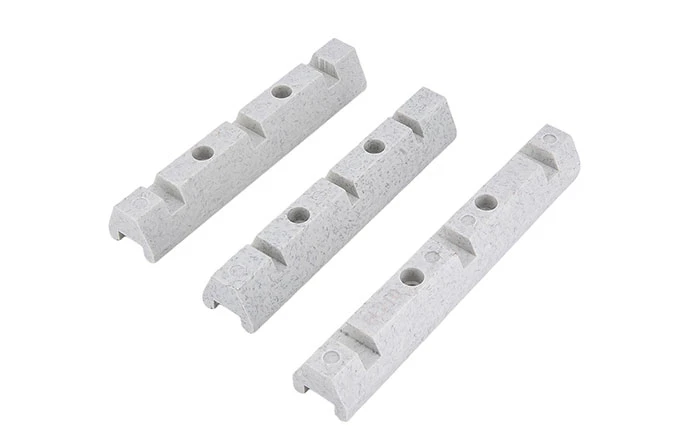

EL Busbar Clamp

EL Busbar support is made of DMC/SMC to support busbar, such as single phase, three phase and four phase. Thickness of busbar is from 0mm-15mm, popular used for electric application, such as distribution box, switchgear, inverter and green power and so on.

Product Overview

CE, SGS, ROHS certificate for busbar support.

Model Meaning

Product Specifications

Model	Length (mm)	Height (mm)	Width (mm)	Customized
EL60	130	35	35	According customer's requirement
EL105	180	28	34
EL130	130	35	35
EL180	180	28	34
EL210	210	28	34
EL270	270	35	35
EL295	295	35	35
EL409	409	35	35
EL500	500	35	35
EL600	600	35	35
EL800	800	35	35
C100	100	40	37.5
C125	125	35	37.5
L85	85	50	40
L100	100	50	40
L125	125	50	40

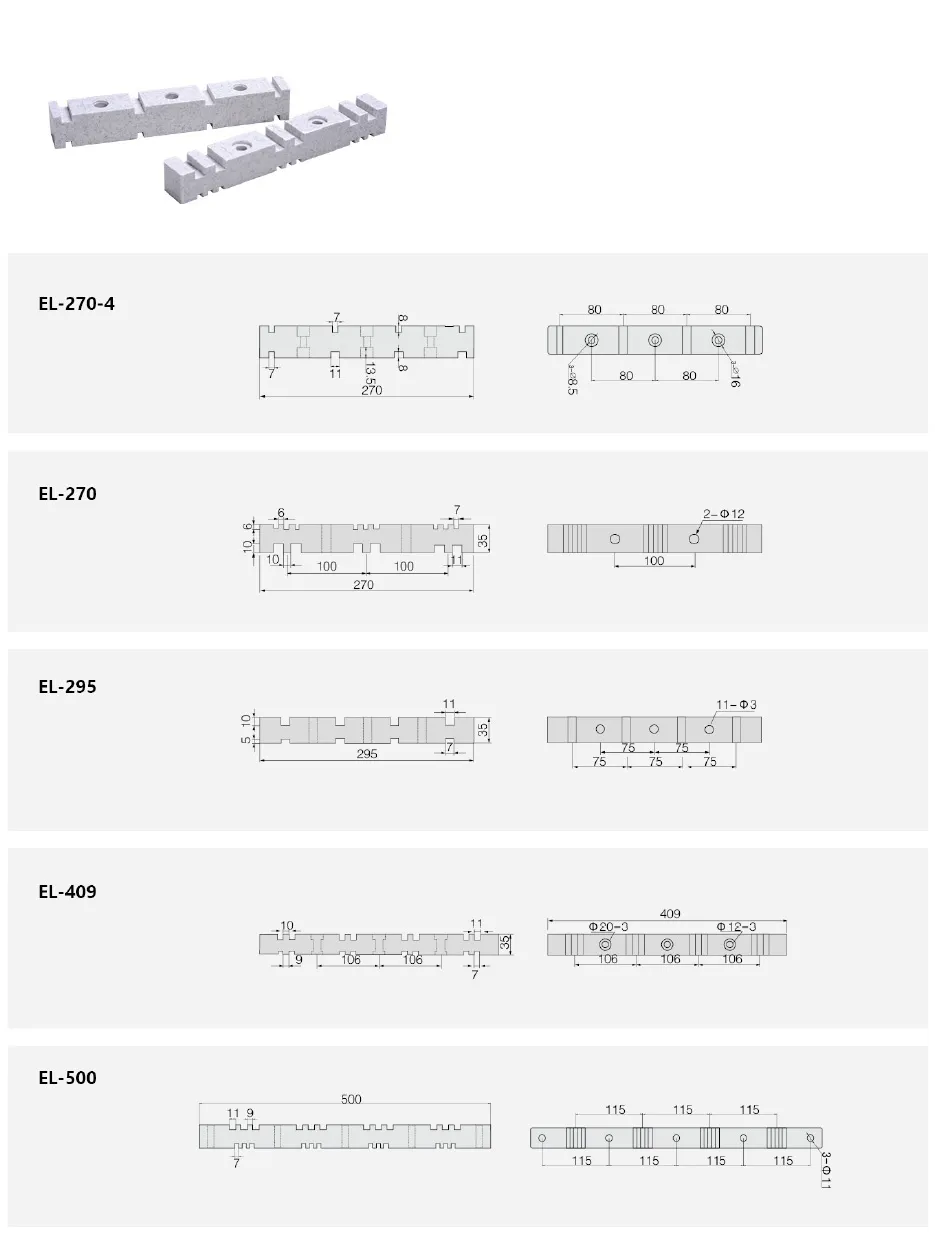

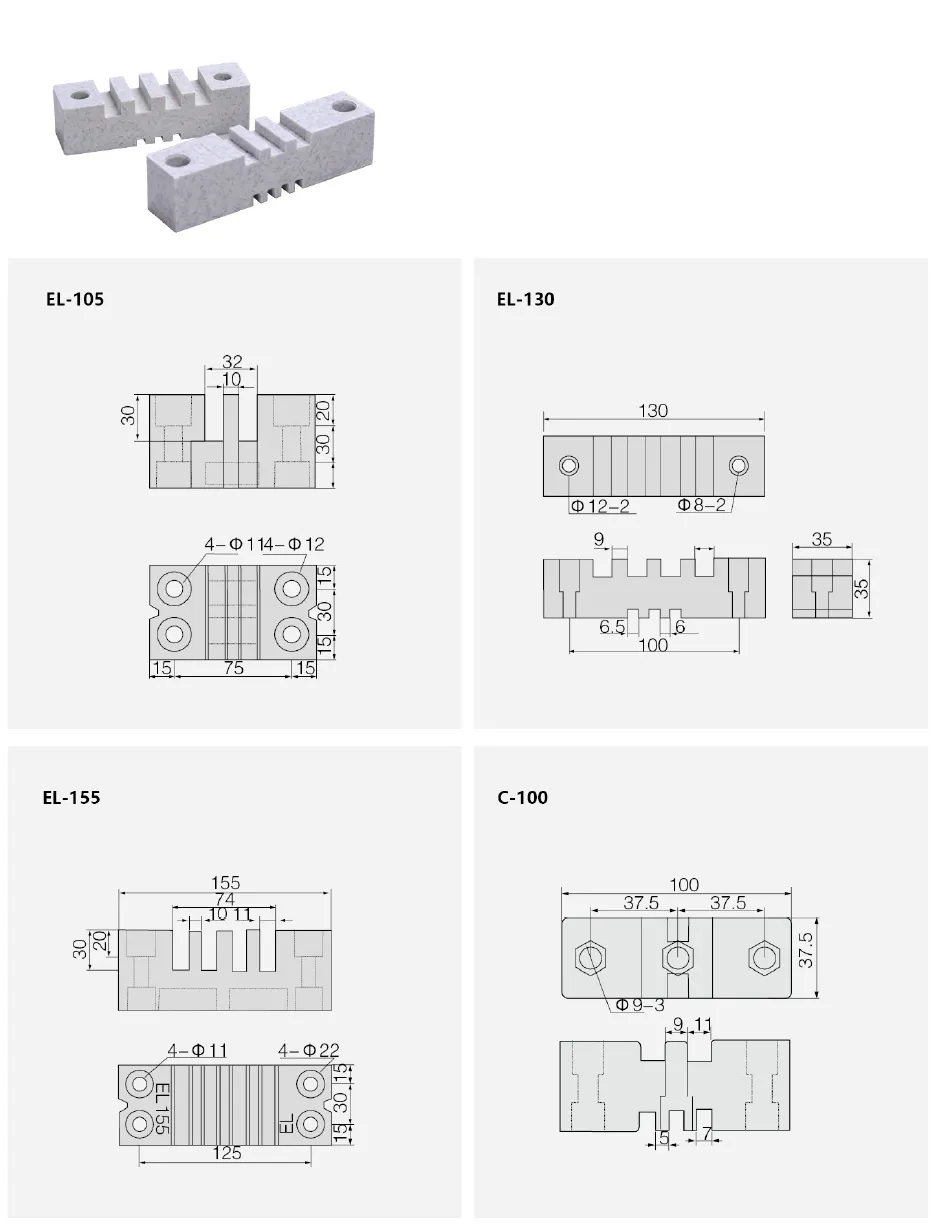

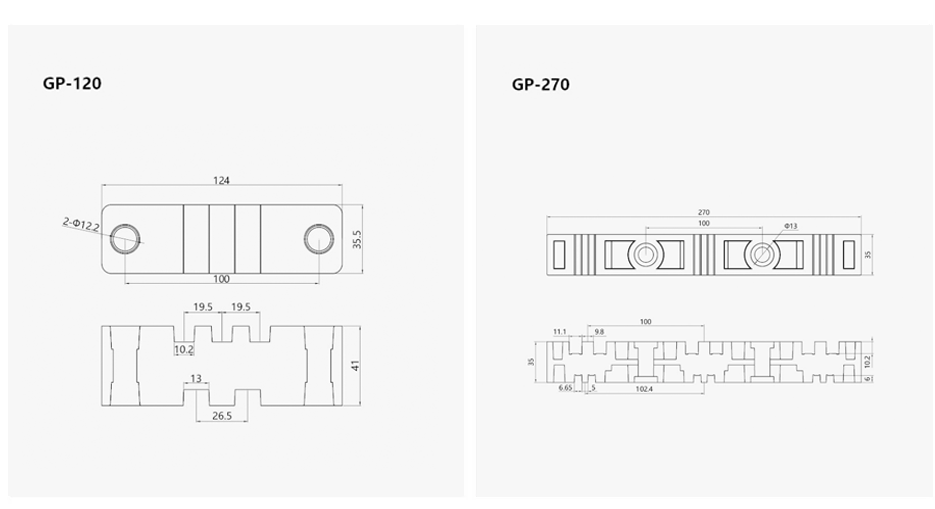

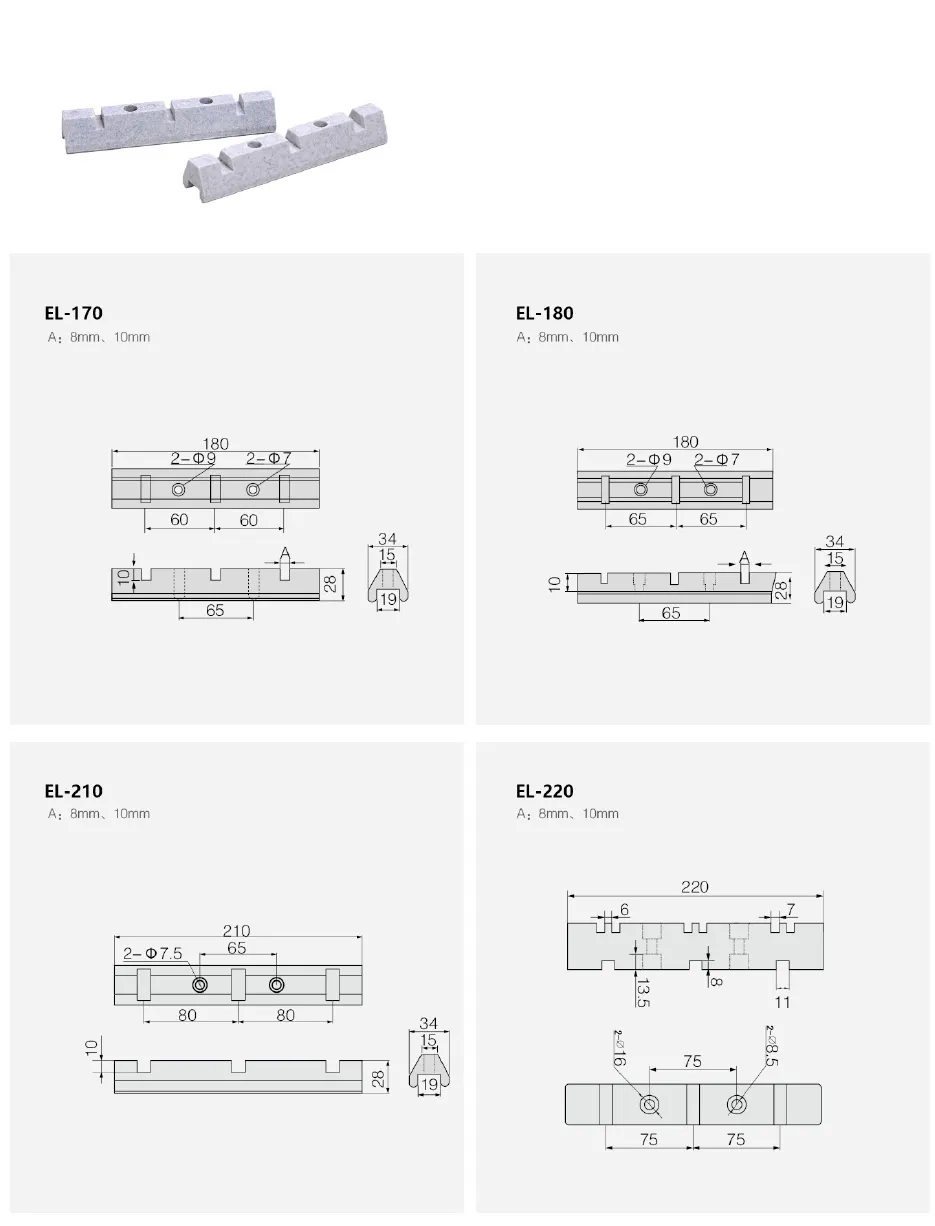

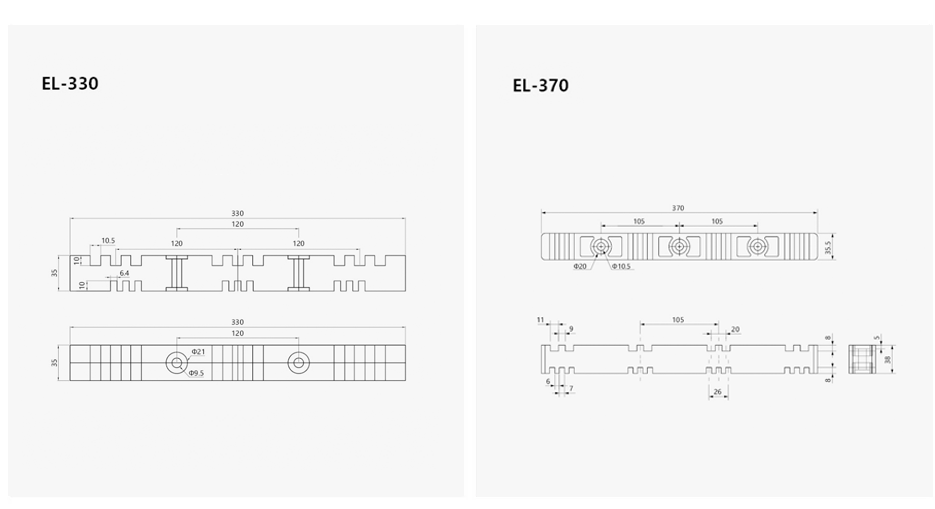

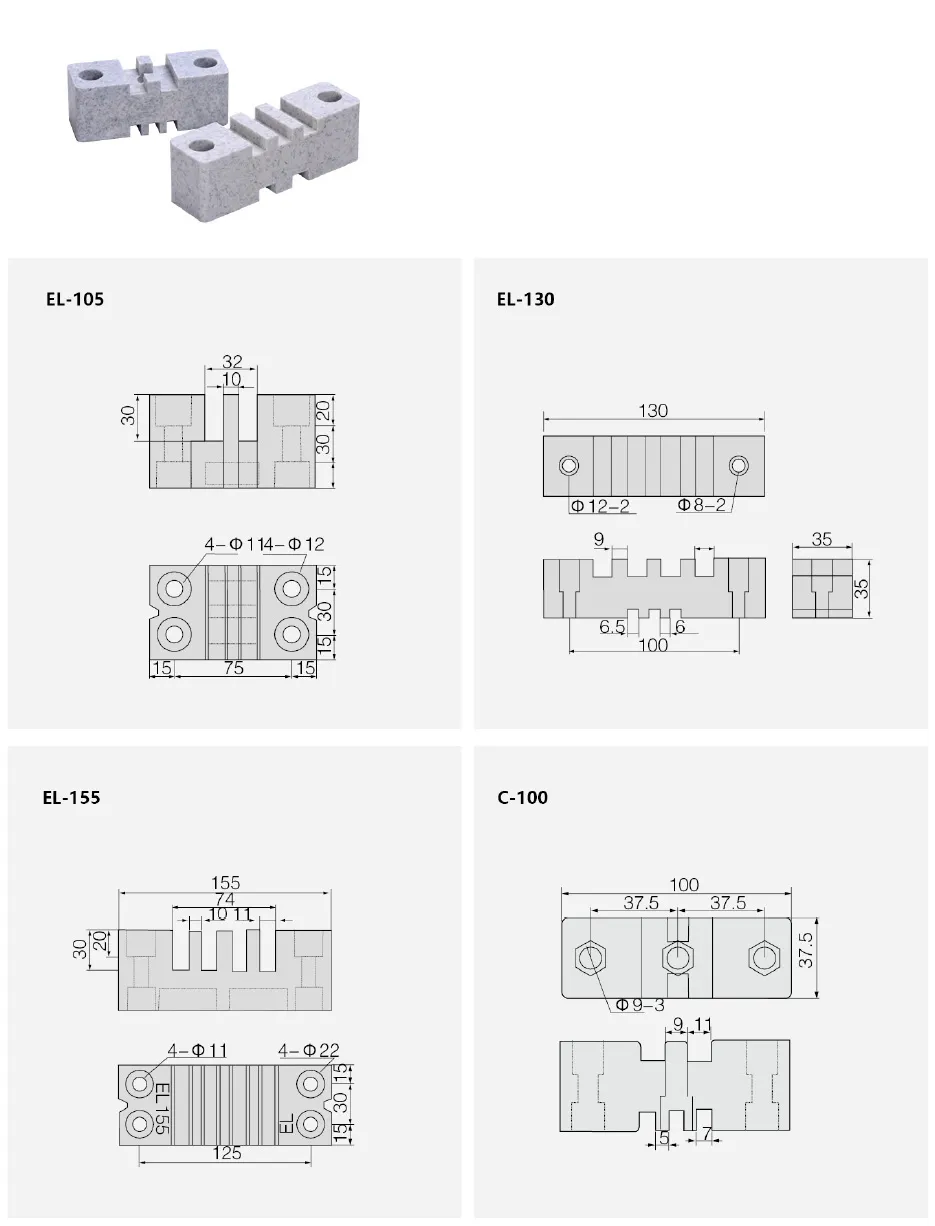

Structure Diagram

Busbar Clamp

EL Busbar Clamp

Insulation Board
